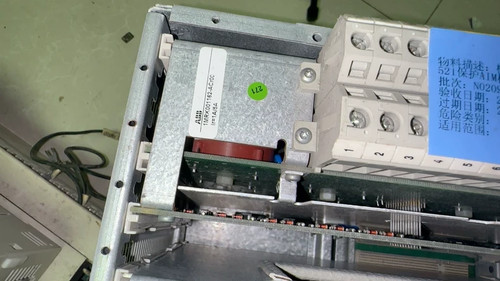

The ABB 1MRK001162-CCr00 is a precision-engineered industrial power control board designed for use within ABB’s advanced protection and control systems. This module serves as a critical hardware interface in power automation, typically integrated into the Relion series or similar substation automation frameworks. It is designed to process high-speed data from electrical networks, ensuring the stable operation of protection relays and control units. Built with industrial-grade components, this card is capable of operating reliably in high-voltage environments with significant electromagnetic interference.
Product Specifications
-
Model Number: 1MRK001162-CCr00
-
Manufacturer: ABB
-
Product Type: Industrial Power Control Board / PLC Module Card
-
Dimensions: 225 mm x 150 mm x 20 mm
-
Weight: 0.48 kg
-
Country of Origin: Sweden
-
Operating Voltage: 24V – 48V DC (Internal logic)
-
Communication: High-speed internal bus / Fiber optic capable
-
Compliance: IEC 61850 Substation Automation Standard
Application Areas
The 1MRK001162-CCr00 is primarily utilized in electrical substations, power distribution networks, and large-scale industrial utility management. It plays a vital role in transmission line protection, transformer monitoring, and busbar management. By providing the logic required to execute protection algorithms, this board helps prevent equipment damage during faults such as overcurrents, short circuits, or frequency fluctuations in the power grid.
Operating Instructions
Installation of the 1MRK001162-CCr00 must be performed by a qualified technician within an ESD-protected environment. The card should be inserted into the specified slot of the protection relay or control cabinet subrack. Ensure the locking mechanisms are engaged to maintain a consistent connection with the backplane. Before commissioning, the system must be configured using ABB’s PCM600 or equivalent protection suite software to ensure the board’s logic matches the specific network protection requirements. Periodically check the diagnostic log files via the system’s communication port to monitor the board’s health and operational history.
Frequently Asked Questions (Q&A)
What does the “CCr00” suffix indicate? The suffix generally refers to the hardware revision and configuration code. “CC” denotes the specific version of the circuit assembly, while “r00” signifies the base revision. It is essential to match these codes exactly when replacing a module to ensure full firmware compatibility.
Can this board be used for direct motor control? While it is an industrial control card, its primary function is protection and high-level power control. It is typically used to manage the relays that protect large motors rather than serving as a direct motor drive controller.
How do I handle a “Hardware Mismatch” error after installation? This error usually occurs if the system software detects a revision code different from what was previously configured. You will need to update the configuration file in the master control unit to recognize the new hardware revision.
Find full technical details and procurement options here: 1MRK001162-CCr00 ABB Control Board
Recommended Similar Models
-
ABB 1MRK001162-AA – Standard Control Module
-
ABB 1MRK001162-BA – Enhanced Processing Board
-
ABB 1MRK002247-AS – Analog Input Module
-
ABB 1MRK000508-AD – Power Supply Card
-
ABB 1MRK001457-AA – Communication Interface Card
