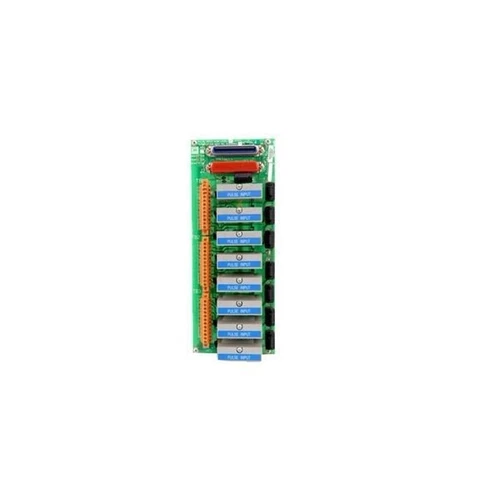

📊 51304084-175 Pulse Input FTA MC-TPIX12 Product Overview
The 51304084-175 Pulse Input FTA MC-TPIX12 is a high-performance industrial input module specifically designed for precise signal processing in automation systems. Used primarily in machinery control, process measurement, and sensor data acquisition applications, the FTA MC-TPIX12 module ensures accurate conversion of pulse signals to digital inputs, supporting systems that require real-time, high-frequency data transmission.
Built with a rugged and reliable construction, this module is capable of handling complex control tasks in demanding environments, such as manufacturing plants, conveyor systems, and automated assembly lines. Its robust functionality is complemented by a compact design, making it an ideal choice for integration into a wide variety of industrial control systems.
🧩 Key Features
- ⚡ High-Speed Pulse Processing: Capable of handling high-frequency pulse inputs, ideal for precise measurement and control.
- 🛡️ Industrial-Grade Durability: Designed to perform reliably in harsh environments, with resistance to vibration, temperature fluctuations, and electromagnetic interference.
- 🔄 Flexible Signal Handling: Supports a wide range of input signals, offering flexibility for integration with different types of sensors and equipment.
- 🧰 Compact and Space-Saving Design: Suitable for tight spaces in industrial control cabinets, providing high functionality without occupying excess room.
- 🔧 Simple Integration: Easy to install and configure with existing automation systems, compatible with standard industrial communication protocols.
📝 Technical Datasheet
| Parameter | Specification |
|---|---|
| Model | 51304084-175 Pulse Input FTA MC-TPIX12 |
| Signal Input Type | Pulse (frequency input) |
| Input Voltage | 24V DC ± 10% |
| Input Range | 0 to 10 kHz |
| Output Type | Digital (compatible with various control systems) |
| Communication Protocol | CANopen, Modbus RTU |
| Dimensions | 125 mm x 80 mm x 55 mm |
| Mounting Type | DIN rail mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Weight | 320 grams |
| Protection Class | IP20 |
| Certifications | CE, UL, RoHS |
| Power Consumption | 1.5 W max |
| Response Time | ≤ 1ms |
🌍 Industrial Applications
The 51304084-175 Pulse Input FTA MC-TPIX12 is designed for a wide array of applications across various industries, including:
- ⚙️ Manufacturing and Automation Systems: Collects data from machines and sensors, converts pulse signals into readable digital inputs for real-time process control.
- 📊 Flow Metering Systems: Converts pulse outputs from flow meters into data for monitoring and adjusting fluid flow rates.
- 🛠️ Position Feedback Systems: Used in machinery where accurate position feedback from motors and actuators is required.
- 🚧 Conveyor and Assembly Lines: Monitors material movement through conveyors, ensuring precise counting and flow regulation.
- 🚜 Agricultural Machinery: Can be used in tractors and other heavy equipment to monitor and control various operational parameters.
Its versatility makes it suitable for systems that require accurate pulse signal processing and integration with various control modules.
🔧 Advantages
- 🔄 Versatile Pulse Handling: Capable of working with a wide range of input pulse frequencies, making it adaptable to diverse industrial tasks.
- 🌡️ Wide Temperature Range: Designed to perform reliably in both extreme cold and hot environments, ensuring long-lasting functionality.
- 🛠️ Easy Maintenance and Support: Simple installation and integration with existing systems, coupled with reliable after-sales support.
- 🧩 Compact and Efficient: Space-saving design that offers high performance without consuming unnecessary space in industrial cabinets.
- 🔐 Robust and Secure: Built with durable materials to withstand high-stress environments, ensuring operational safety and minimal downtime.
🧳 Where to Buy?
Explore the full range of automation components and pulse input modules:
🔗 Visit FY-Module Official Store
🔗 Check out our complete product catalog
🔄 Recommended Similar Models
| Model | Features | Application Use |
|---|---|---|
| 51304084-176 Pulse Input FTA MC-TPIX13 | Supports higher frequency input range | Ideal for systems with faster data processing needs |
| 51304084-180 Pulse Input FTA MC-TPIX10 | Compact design, lower voltage requirement | Suitable for low-power equipment requiring pulse signal conversion |
| 51304084-178 Pulse Input FTA MC-TPIX15 | Extended temperature range, high-speed processing | Suitable for extreme industrial environments requiring high-precision feedback |
| 51304084-174 Pulse Input FTA MC-TPIX14 | Offers additional communication protocols | Perfect for integration with complex multi-protocol control systems |
These models provide alternatives for systems with varying input and processing needs, and they ensure compatibility with different industrial communication setups.
🛠️ After-Sales Support
- 📞 24/7 Technical Support: Immediate assistance for installation, troubleshooting, and configuration.
- 🔧 Replacement & Warranty: Return and replacement options available for defective products.
- 📝 Comprehensive Documentation: Installation manuals, technical guides, and datasheets are provided to ensure quick setup and integration.
- 💡 Training Services: Tailored training sessions for operators to get the most out of your equipment.
The 51304084-175 Pulse Input FTA MC-TPIX12 is a highly reliable, precise, and efficient solution for industrial automation systems that require pulse signal conversion. Its versatile design and rugged construction make it a perfect fit for numerous demanding applications, ensuring optimal system performance and uptime.
