ABB 086349-002 | Power Supply Interface Module for Industrial Automation

The ABB 086349-002 is a high-performance interface module designed for seamless integration within industrial control systems. Engineered for reliability and precision, this module facilitates critical communication and power distribution pathways, ensuring that complex automation environments maintain peak operational efficiency. As a genuine ABB component, it adheres to the highest manufacturing standards, offering robust protection against electrical interference and environmental stressors commonly found in heavy industrial settings.

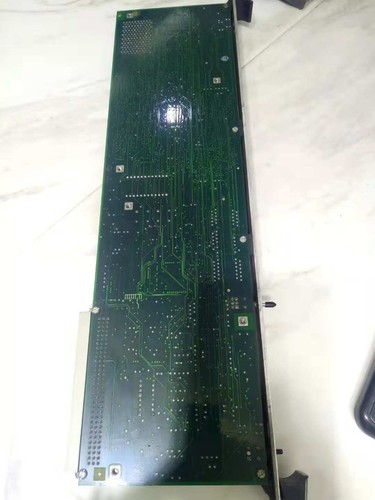

ABB 086349-002 Module

Technical Specifications and Datasheet

The following parameters define the physical and operational characteristics of the 086349-002 module.

Core Parameters

  • Product ID: 086349-002

  • Brand: ABB

  • Module Type: Interface/Power Distribution

  • Input Voltage: Standard Industrial Rating

  • Operating Temperature: -20°C to +60°C

Physical Attributes

  • Dimensions: 155 mm x 115 mm x 40 mm

  • Weight: 0.85 kg

  • Country of Origin: Switzerland/Germany (Refer to specific batch labeling)

  • Mounting Type: DIN Rail or Panel Mount

Applications and Industrial Use

The 086349-002 module is primarily deployed in sectors requiring high-availability control architectures. Its versatility makes it a staple in:

  • Oil & Gas: Managing safety-critical data in refineries and offshore platforms.

  • Power Generation: Ensuring stable signal transmission in turbine control systems.

  • Chemical Processing: Monitoring precise environmental variables in hazardous zones.

  • Water Treatment: Facilitating long-range telemetry and automation.

Product Instructions and Operation

To ensure the longevity and safety of the ABB 086349-002, please follow these installation guidelines:

  1. Preparation: Verify that the power source is disconnected before attempting installation to prevent electrical discharge.

  2. Mounting: Secure the module onto a standard 35mm DIN rail. Ensure there is sufficient clearance (minimum 20mm) around the unit for heat dissipation.

  3. Wiring: Use shielded twisted-pair cables for signal inputs to minimize EMI. Ensure all terminal screws are tightened to the specified torque.

  4. Configuration: Configure the module addresses or dip-switch settings according to your specific system architecture before powering up.

Frequently Asked Questions (Q&A)

Q1: Is the 086349-002 hot-swappable? A1: Generally, it is recommended to power down the sub-rack before replacement to prevent transient voltage spikes, unless the specific backplane architecture supports hot-swap functionality.

Q2: What should I do if the status LED indicates a fault? A2: First, check the input voltage levels. If the voltage is within range, inspect the terminal connections for loose wires or short circuits.

Q3: Can this module be used in extreme humidity? A3: This module is designed for industrial indoor use. For high-humidity environments, it should be housed in a NEMA 4 or IP65-rated enclosure.

Similar Recommended Models

For system expansions or alternative configurations, consider these related ABB components:

  • ABB 086361-001 Communication Interface

  • ABB 086352-003 Analog Input Module

  • ABB PM861AK01 Processor Unit

  • ABB DI810 Digital Input Module

  • ABB DO810 Digital Output Module
