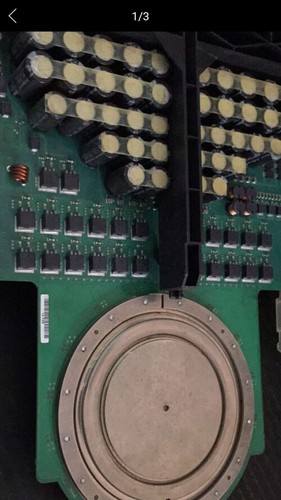

The ABB 3BHB003154R0101 (incorporating technical references 5SXE030141 and 5SGX2645L0004) is a sophisticated gate driver module designed for high-power semiconductor switching. This board is a critical component in ABB’s medium-voltage drives and excitation systems, such as the ACS6000 or UNITROL series. It serves as the physical and electrical interface that triggers Integrated Gate-Commutated Thyristors (IGCTs). By converting low-voltage control signals into the high-current pulses required to toggle power semiconductors, this board ensures precise motor control and energy conversion in heavy-duty industrial applications.
Technical Specifications and Datasheet
The following parameters define the operational and physical profile of this driver board.
Core Parameters
-
Product ID: 3BHB003154R0101
-
Sub-Component IDs: 5SXE030141 / 5SGX2645L0004
-
Associated Housing/Part: 3BHL000390P010
-
Function: IGCT Gate Driver / Phase Module Interface
-
Signal Transmission: Fiber Optic (for high-voltage isolation)
Physical Attributes
-
Dimensions: 285 mm x 210 mm x 45 mm
-
Weight: 1.15 kg
-
Country of Origin: Switzerland
-
Cooling Requirement: Forced air cooling (typical within converter cabinet)
Applications and Industrial Use
This module is engineered for high-availability systems where power density and switching precision are paramount:
-
Medium Voltage Drives (MVD): Integrated into ACS6000 converters for controlling massive motors in mining and metals.
-
Excitation Systems: Managing power stages in UNITROL systems for grid-scale synchronous generators.
-
Static Frequency Converters: Facilitating rail power supply and grid-to-grid interconnections.
-
Wind Energy: Used in the power conversion chain of multi-megawatt offshore wind turbines.
Product Instructions and Operation
To ensure the technical integrity of the ABB 3BHB003154R0101, please adhere to the following guidelines:
-
Fiber Optic Integrity: Most control signals are sent via fiber optics to prevent electromagnetic interference. Clean all optical connectors with isopropyl alcohol and a lint-free swab before insertion.
-
Mounting: This board must be securely bolted to the power semiconductor assembly. Ensure the contact surfaces are clean to provide a low-impedance path for the gate current.
-
Power Sequencing: Always energize the auxiliary power supply to the driver board before applying high voltage to the DC link. This ensures the protection logic is active before the semiconductors are stressed.
-
Safety Warning: This board is directly connected to components carrying thousands of volts. Discharge all DC link capacitors and verify zero-voltage status before performing any maintenance.
Frequently Asked Questions (Q&A)
Q1: What is the relationship between the different part numbers on this board? A1: 3BHB003154R0101 is the top-level assembly number. 5SXE030141 often refers to the specific PCBA, while 5SGX2645L0004 refers to the integrated IGCT component or specialized sub-logic.
Q2: Can I test this board on a standard electronics bench? A2: No. Testing requires specialized high-current pulse generators and fiber optic simulators. Standard multimeters cannot capture the nanosecond-scale switching pulses this board generates.
Q3: How do I identify a failure in the gate driver? A3: Most ABB converters will report a “Gate Lead Fault” or “IGCT Supply Failure.” Visually inspect the board for “scorched” resistors or leaking capacitors, which are common signs of end-of-life.
