The ABB 3BHE004059R0001 SDCS-CON-2A is a high-performance digital control board designed specifically for the DCS500 and DCS600 series of DC converters. As the central processing unit of the drive, it manages all control functions, communication interfaces, and signal processing to ensure precise motor speed and torque regulation.

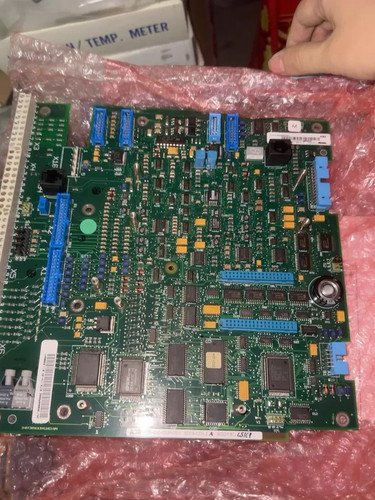

ABB 3BHE004059R0001 | SDCS-CON-2A | DC Drive Control Board
The SDCS-CON-2A is engineered to handle complex control algorithms for industrial DC motor applications. It integrates a microprocessor that processes feedback from speed and current sensors, executing firing angle calculations for the thyristor power bridge. This board is essential for upgrading or maintaining legacy ABB DC drive systems, offering robust reliability in harsh industrial environments.
Product Specifications
Product Name: DC Drive Control Board Model Number: SDCS-CON-2A Part ID: 3BHE004059R0001 Compatibility: ABB DCS500 / DCS600 Series Microprocessor: High-speed 16-bit / 32-bit architecture Interface Ports: Encoder inputs, Analog I/O, Digital I/O, and Communication Link Dimensions: 260 mm x 180 mm x 30 mm Weight: 0.85 kg Country of Origin: Switzerland / Estonia
Application Areas
The SDCS-CON-2A board is a core component in heavy-duty industrial DC drive systems. Typical applications include:
-
Metals and Mining: Controlling large DC motors in rolling mills and mine hoists.
-
Pulp and Paper: Precision speed control for sectional paper machine drives.
-
Material Handling: Managing large cranes, hoists, and conveyor systems.
-
Cement and Rubber: Providing high torque at low speeds for extruders and kilns.
Usage Instructions
To ensure the longevity and proper operation of the SDCS-CON-2A:
-
Installation: Static electricity can damage the board. Always wear an ESD (Electrostatic Discharge) wrist strap when handling the unit.
-
Firmware: The board may require specific firmware loading depending on whether it is being used in a DCS500 or DCS600 system.
-
Connectivity: Ensure all ribbon cables and fiber optic connectors (if applicable) are securely seated in their respective slots.
-
Configuration: Parameters must be set via the DriveWindow tool or the local control panel to match the motor’s nameplate data and application requirements.
Q&A – Frequently Asked Questions
Can this board replace an older SDCS-CON-1 board? The SDCS-CON-2A is the successor to the CON-1. While it offers improved processing, it may require firmware adjustments and parameter re-configuration to be fully backward compatible.
Does the board include the firmware pre-installed? Usually, these boards are shipped as hardware only. The specific system software (Firmware) must be downloaded from the original drive or flash memory during setup.
What do the onboard LEDs indicate? The LEDs provide diagnostic status. A steady green light usually indicates the 5V power supply is healthy, while red or flickering lights indicate a fault or communication error with the pulse transformer board.
How should the board be stored? Store in the original anti-static bag in a dry, temperature-controlled environment to prevent oxidation of the terminal pins.
