ABB 3EGM030300R0002 12KM02E-V0002 | Pulse Processing and Control Module

The ABB 3EGM030300R0002 (12KM02E-V0002) is a specialized electronic module utilized primarily within the ProControl P13 system architecture. This module is engineered for high-speed signal processing, frequently functioning as a pulse evaluator or counter module in power generation and heavy industrial control loops. By converting raw physical signals into digital logic that the central processor can interpret, the 12KM02E-V0002 plays a vital role in monitoring rotational speeds, flow rates, and other frequency-based industrial variables.

Technical Specifications and Datasheet

The following specifications detail the physical and technical profile of the 12KM02E-V0002.

Core Parameters

  • Product ID: 3EGM030300R0002

  • Model Designation: 12KM02E-V0002

  • Series: ProControl P13

  • Function: Pulse Processing / Frequency Evaluation

  • Input Signal Type: Binary pulses, NAMUR sensors, or incremental encoders

Physical Attributes

  • Dimensions: 190 mm x 140 mm x 20 mm

  • Weight: 0.52 kg

  • Country of Origin: Switzerland

  • Operating Temperature: 0°C to +55°C (within cabinet)

Applications and Industrial Use

The 12KM02E-V0002 is designed for precision-heavy environments, including:

  • Steam Turbine Control: Monitoring shaft speed and overspeed protection sequences.

  • Hydroelectric Power: Coordinating wicket gate positions based on pulse feedback.

  • Chemical Dosing: Calculating precise flow rates from pulse-output flowmeters.

  • Material Handling: Tracking conveyor belt speeds and positioning in automated logistics.

Product Instructions and Operation

To maintain the operational integrity of the ABB 3EGM030300R0002 12KM02E-V0002, follow these technical procedures:

  1. Rack Mounting: Carefully slide the module into the P13 subrack. Ensure the Eurocard connectors are perfectly aligned with the backplane to prevent pin damage.

  2. Signal Wiring: Use twisted-pair shielded cables for all pulse inputs. The shield should be grounded at the cabinet entry point to eliminate high-frequency noise that could cause false counts.

  3. Parameterization: Define the pulse scaling factors and filtering constants via the system engineering tool. Ensure the module’s hardware address matches the software configuration.

  4. Diagnostic Monitoring: Observe the front-panel status indicators during startup. A pulsing LED usually indicates active signal reception, while a steady fault light suggests a hardware mismatch or input circuit break.

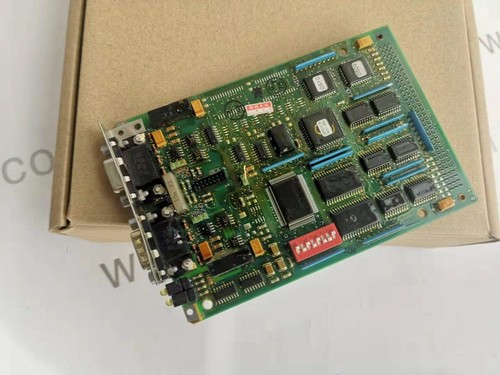

ABB 3EGM030300R0002 12KM02E-V0002 Module

Frequently Asked Questions (Q&A)

Q1: Can this module be used with 24V DC pulse encoders? A1: Yes, provided the input levels are adjusted or matched within the hardware settings of the module. Most V0002 variants support standard industrial signal levels.

Q2: What is the difference between the 3EGM and the 12KM designations? A2: The 3EGM number is the global commercial part ID, while the 12KM02E-V0002 refers to the specific technical hardware type and revision used in engineering documents.

Q3: Does this module require external cooling? A3: While it does not require dedicated fans, it must be installed in a rack with natural or forced convection airflow to prevent localized heat buildup on the processing chips.

Similar Recommended Models

For users managing ProControl or Advant systems, the following related modules are often required:

  • ABB 12KM01E-V0001 Pulse Input Module

  • ABB 12AA02E-V0001 Analog Input Module

  • ABB 12KA01E-V0002 Binary Input/Output Module

  • ABB 3EGM000010R1 Power Supply Module

  • ABB 136PR01B-ES HESG441610R1 Interface Module
