| Feature | Specification |
| 🛡️ Product Model | 53IT5111A21ABX |
| 🏷️ Type | Process Controller Module |
| ⚙️ Control Function | PID / Loop Control |
| 🔌 I/O Interface | Multi-channel Analog & Digital I/O |
| ⚡ Power Supply | Standard Industrial Voltage Range |
| 🖥️ Communication | Fieldbus / Serial Interface |
| 🌡️ Operating Temp | -10°C to +60°C |
| 🛡️ Enclosure | Modular Rack-Mount |

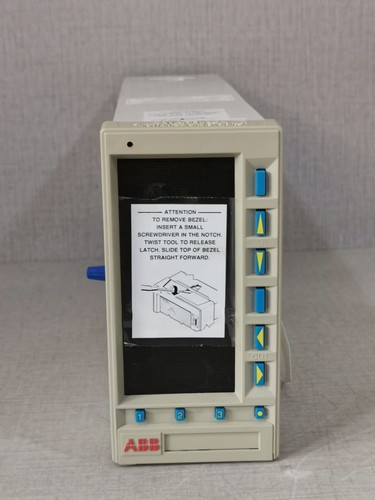

The ABB 53IT5111A21ABX is a robust, microprocessor-based process controller module designed for precise regulation of industrial variables such as temperature, pressure, and flow. As part of ABB’s legacy control portfolio, it is engineered for high-accuracy loop control, providing PID (Proportional-Integral-Derivative) algorithms that ensure process stability in critical manufacturing and power generation sectors.
Product News
The 53IT series remains a trusted solution for facilities running established, reliable control architectures. While modern control systems have migrated toward fully integrated DCS/PLC environments, these modules continue to be utilized for localized loop control where autonomous, high-speed response is required. Industry professionals often source these units for replacement in existing systems to avoid costly full-system migrations.
Operation & Usage Instructions
-
Safety First: Ensure the rack is properly grounded before installation. Always verify power supply polarity to prevent permanent damage to the module electronics.
-
Configuration: Utilize the interface port to download parameter sets, including P, I, and D gains, setpoints, and alarm limits.
-
Sensor Input: Ensure that the input sensors (RTD, Thermocouple, or 4–20 mA) are correctly scaled in the software to match the engineering units of your process.
-
Maintenance: Periodically check the terminal block connections for corrosion or loose wires, especially in high-vibration environments.
-
Module Swap: If replacing a faulty unit, ensure the new 53IT5111A21ABX matches the hardware revision of the original to ensure compatibility with existing bus backplanes.
Product Operation
The controller works by continuously sampling the process variable (PV) from an input sensor. It compares the PV against the target setpoint (SP) and calculates the error. The module then processes this error through its internal PID algorithm to adjust the output control signal (e.g., valve position or heater power). This real-time, closed-loop feedback mechanism allows the module to maintain precise control, minimizing deviations and disturbances in the industrial process.
Q&A
Q: What is the specific role of the PID algorithm in this module?
A: The PID algorithm calculates the “control effort” needed to eliminate the difference between the actual process reading and your desired setpoint, ensuring the process reaches the target efficiently without excessive oscillation.
Q: Can I integrate the 53IT5111A21ABX into a larger PLC network?
A: Yes, it is typically designed to interface with higher-level systems via its communication ports, allowing for remote monitoring and remote setpoint adjustment.
Q: How do I know if the module is in an error state?
A: Front-panel diagnostic LEDs will indicate status. A solid green light usually signifies normal operation, while flashing red or orange lights indicate a hardware fault, loop failure, or communication loss.
