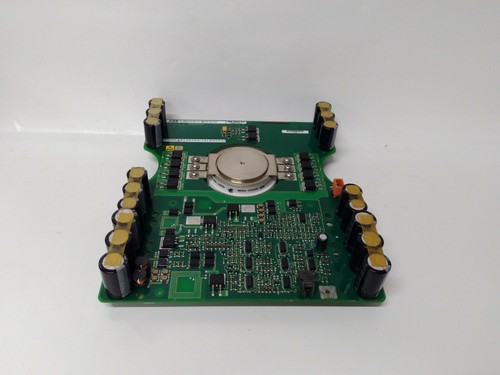

The ABB 5SHX06F6004, also identified by the assembly part numbers 3BHB003387R0101, 5SXE05-0151, and 3BHB003151P104, is a high-power Integrated Gate-Commutated Thyristor (IGCT) semiconductor module. This component is a cornerstone of ABB’s high-power electronics portfolio, specifically designed for medium-voltage drives and power conversion systems. The IGCT combines the high-current capabilities of a thyristor with the fast-switching, voltage-controlled advantages of a transistor. This specific module is engineered for extreme reliability in heavy-duty industrial applications, featuring a integrated gate unit that ensures low-loss switching and robust protection against high dV/dt (voltage rise) rates.
Product Specifications and Datasheet
General Parameters
-
Model Number: 5SHX06F6004
-
Assembly ID: 3BHB003387R0101
-
Component ID: 5SXE05-0151 / 3BHB003151P104
-
Device Type: IGCT (Integrated Gate-Commutated Thyristor)
-
Repetitive Peak Off-State Voltage ($V_{DRM}$): 6000V (6kV)
-
Controllable Turn-off Current ($I_{TGQM}$): Approx. 600A – 800A (Application dependent)
-
Switching Frequency: High-speed industrial switching capable
-
Gate Unit: Integrated, requires fiber optic control and 24V DC auxiliary power
Physical and Logistics
-
Dimensions: 185 mm (Diameter) x 255 mm (Total Height with Gate Unit)
-
Weight: 4.2 kg
-
Country of Origin: Switzerland
-
HS Code: 85413000
-
Cooling: Forced air or liquid cooling (via external heat sink pressing)
Application Areas
The 5SHX06F6004 is a critical component in high-demand energy sectors. It is primarily used in SFC (Static Frequency Converters) for railway power supplies, STATCOM (Static Synchronous Compensators) for grid stability, and ACS 6000 series medium-voltage drives. These drives power massive motors in mining conveyors, water pumps, and steel rolling mills. Its high voltage rating makes it ideal for direct grid connection or transformer-coupled industrial power systems where efficiency and compact design are required.
Product Instructions
Handling this module requires specialized equipment. As a “press-pack” device, the 5SHX06F6004 must be installed within a clamping assembly that applies a specific mechanical force (typically measured in kilonewtons) to ensure electrical and thermal contact. The mounting surfaces must be polished and coated with a thin layer of thermal compound. The gate unit is controlled via fiber optic cables to ensure total galvanic isolation between the high-power circuit and the control logic. Always verify that the auxiliary 24V DC supply to the gate driver is stable before applying high voltage to the anode/cathode terminals.
Common Questions & Answers (Q&A)
What is the significance of the 6004 suffix?
In ABB nomenclature, the “60” typically refers to the voltage class (6.0kV), and the “04” refers to the specific hardware iteration or internal silicon configuration.
Why are there multiple part numbers (3BHB, 5SXE)?
The 3BHB number is the global ABB ordering code for the full assembly (Semiconductor + Gate Driver), while 5SXE and 5SHX codes usually identify the individual internal components or specific sub-assemblies.
Can this module be tested with a standard multimeter?
No. Due to the integrated gate driver and the high-voltage nature of the thyristor, standard multimeters cannot verify functional performance. Testing requires a high-voltage curve tracer or a specialized IGCT test stand.
5SHX06F6004 ABB Related Models
-
5SHX08F6004: Higher current version of the 6kV IGCT series.
-
3BHB003149R0101: Related gate driver interface card.
-
ACS 6000 Phase Module: Complete inverter phase assembly using IGCT technology.
-
5SHY35L4510: 4.5kV IGCT module for lower voltage medium-power applications.
-
3BHE024577R0101: Power supply module for IGCT gate units.
