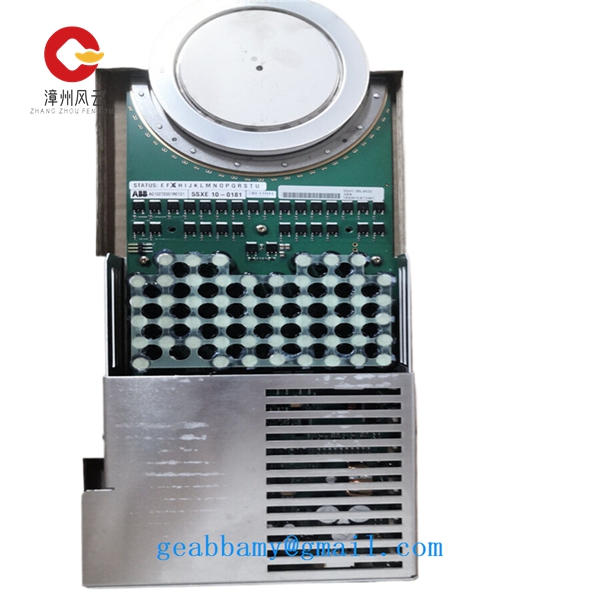

ABB 5SHY35L4520 / 5SXE10-0181 AC10272001R0101 IGBT Power Module Overview
The ABB 5SHY35L4520 / 5SXE10-0181 AC10272001R0101 is a high-performance IGBT power module used in industrial power control systems. It is designed to manage high current and voltage loads with reliable switching characteristics, making it ideal for applications in drives, converters, and large-scale inverters. The module operates with a collector-emitter voltage rating of up to 4500V and a continuous collector current of 1800A. These specifications enable the module to support demanding power electronics environments where thermal and electrical stress are critical. With robust housing and built-in protection mechanisms, the module ensures consistent operation and longevity in harsh conditions.
This IGBT module features a dual configuration and uses advanced semiconductor technology for efficient energy conversion. It provides low power loss during switching, which reduces heat generation and increases energy efficiency. The module includes integrated temperature sensors and gate drivers to simplify the design and improve system protection. Its compact structure allows it to be mounted easily in space-constrained cabinets. It also supports parallel operation, making it scalable for higher power requirements. ABB’s thermal management design ensures the module performs consistently even under full load. This contributes to better overall system uptime and lower maintenance costs.
In today’s industrial landscape, the demand for reliable, high-power semiconductors continues to grow. With the global focus on automation, smart grids, and renewable energy, power modules like the ABB 5SHY35L4520 play a crucial role in system stability. Industries such as rail transport, wind power, and heavy machinery rely on this type of module to control power flow and protect sensitive electronic components. The push toward energy-efficient technologies also drives adoption of IGBT modules in both new installations and retrofits. ABB’s continuous innovation in power electronics ensures that modules like this meet evolving industry standards and application needs.
Zhangzhou Fengyun Electric Equipment Co., Ltd. offers high-quality industrial automation components, focusing on importing and distributing brands from Europe and North America. The company provides fast delivery, technical support, and complete after-sales service. Their product range includes PLCs, industrial boards, control modules, I/O cards, and power supplies. Sales engineer Amy is ready to provide support at 15359029662 or by email at geabbamy@gmail.com.
For more information, please visit:
🔗 Company Website
🔗 All Products
🔗 Contact Us
Recommended Similar Models
| Brand | Model Number | Description |
|---|---|---|
| ABB | 5SHY3545L0010 | 4500V 1200A IGBT Module |
| ABB | 5SHY4045L0002 | High-power IGBT phase control unit |
| ABB | 5SHX1060H0001 | GTO Thyristor Module 4500V/2500A |
| ABB | 5SDF0540H0001 | 5400V Diode Module for HVDC |
| ABB | 5SNA1500E330305 | IGBT Module for industrial inverters |
| ABB | 5SDF0300Q0001 | 300A Diode Module for traction |
| ABB | 5SDD2500G0001 | 2500A GTO Gate Turn-Off Thyristor |
| ABB | 5SHY4045L0001 | 4500V IGBT Gate Unit Module |
| ABB | 5SXE10-0190 | Phase Control Trigger Unit |
| ABB | 5SDD1040G0001 | High-Power GTO Module |
All items are available through Zhangzhou Fengyun Electric Equipment Co., Ltd. with expert support and fast delivery.
