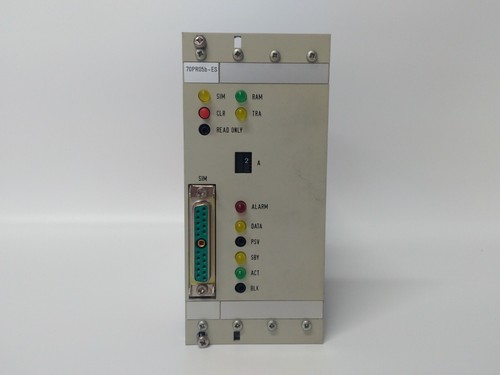

The ABB 70PR05B-ES (HESG332204R0001) is a specialized electronic module designed for high-precision control and signal processing within industrial automation frameworks. Often integrated into the ABB ProControl P13 system or similar legacy DCS architectures, this module serves as a robust interface for managing complex logic and data acquisition tasks. Built to withstand the rigorous demands of continuous industrial operation, it provides high signal integrity and long-term stability, ensuring that critical process loops remain synchronized and efficient.
Technical Specifications and Datasheet
The technical details below define the operational and physical profile of the HESG332204R0001 module.
Core Parameters
-
Product ID: HESG332204R0001
-
Model Name: 70PR05B-ES
-
Type: Logic Control / Interface Module
-
System Compatibility: ProControl P13 / Industrial IT
-
Power Supply: Standard system-level DC input
Physical Attributes
-
Dimensions: 190 mm x 135 mm x 25 mm
-
Weight: 0.58 kg
-
Country of Origin: Switzerland
-
Operating Humidity: 5% to 95% non-condensing
Applications and Industrial Use
The 70PR05B-ES is engineered for sectors where system uptime is paramount. Typical applications include:
-
Power Plants: Handling logic for turbine control and auxiliary boiler systems.
-
Refineries: Managing signal distribution for hazardous area monitoring.
-
Steel Mills: Coordinating high-speed motor drives and synchronized rollers.
-
Infrastructure: Serving as a primary control node for large-scale utility monitoring.
Product Instructions and Operation
To ensure the optimal performance of the ABB 70PR05B-ES HESG332204R0001, please observe the following guidelines:
-
ESD Protection: This module contains sensitive electronic components. Always wear a grounded anti-static wrist strap when handling the unit or inserting it into a rack.
-
Installation: Align the module carefully with the backplane connectors. Slide it into the card cage and ensure the locking tabs are fully engaged to prevent communication errors caused by vibration.
-
Configuration: Verify the firmware version and dip-switch settings (if applicable) against your system’s master configuration file before applying power.
-
Environment: Ensure the control cabinet has adequate airflow. While the module is rugged, excessive heat can reduce the lifespan of internal capacitors.
Frequently Asked Questions (Q&A)
Q1: Is the 70PR05B-ES compatible with modern 800xA systems? A1: This module is primarily designed for the P13 series. Integration into 800xA systems typically requires specific interface gateways or migration hardware.
Q2: What is the significance of the “-ES” suffix? A2: The “-ES” suffix often denotes a specific version designed for “Extended Support” or specialized signal characteristics within the ProControl series. Always check your technical manual for specific revision differences.
Q3: How do I perform a hard reset on this module? A3: Most logic modules in this series are reset by cycling the rack power or through a software command from the engineering workstation. Avoid pulling the module under load unless your rack specifically supports hot-swapping.
