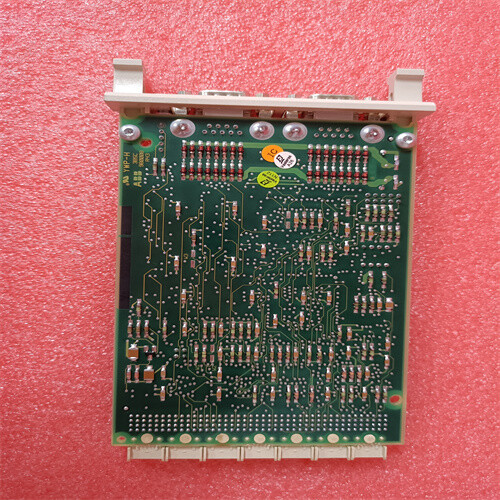

The ABB CI532V05 (part number 3BSE007297R1) is a versatile Multi-Vendor Interface (MVI) module designed for the Advant Controller 400 series. This module functions as a flexible communication gateway, allowing the Advant OCS to interface with third-party devices, PLCs, and specialized industrial equipment that do not use standard ABB protocols. By supporting various serial communication standards and programmable protocols, the CI532V05 ensures seamless data integration across heterogeneous automation environments.
Product Specifications
Product Name: Generic MVI Module Model Number: CI532V05 Part ID: 3BSE007297R1 Communication Ports: 2 Serial Ports (RS-232 / RS-485 / RS-422) Protocols Supported: Modbus RTU, Allen-Bradley DF1, Siemens 3964R, and User-Defined Protocols Data Rate: Up to 19.2 kbit/s (depending on protocol) Isolation: Galvanic isolation for serial interfaces Dimensions: 233 mm x 160 mm x 20 mm Weight: 0.55 kg Country of Origin: Sweden
Application Areas
The CI532V05 is essential for bridging communication gaps in complex industrial plants:
-
Third-Party Integration: Connecting Advant Controllers to non-ABB PLCs (e.g., Schneider, Siemens, or Rockwell) for plant-wide data aggregation.
-
Specialized Device Interfacing: Reading data from weight scales, barcode scanners, and analytical instruments.
-
Legacy System Migration: Facilitating communication between modern Advant systems and older serial-based equipment.
-
Substation Monitoring: Interfacing with Intelligent Electronic Devices (IEDs) and protection relays using Modbus.
Usage Instructions
To ensure the technical integrity of the CI532V05:
-
Hardware Configuration: Before installation, verify the jumper settings on the board to select the appropriate electrical interface (RS-232 or RS-485) for your application.
-
Installation: Insert the module into the designated slot of the Advant Controller subrack. Ensure the module is firmly seated in the backplane to prevent intermittent communication drops.
-
Programming: Use the Application Builder (AMPL) or dedicated MVI configuration tools to define the message structures, polling rates, and data mapping for the specific third-party protocol.
-
Cabling: Use high-quality shielded twisted-pair cables for serial connections. Ground the shield at the controller end to protect against electromagnetic interference (EMI).
Q&A – Frequently Asked Questions
What does the “Generic” in Generic MVI Module mean? It means the module hardware is not hard-coded for a single protocol. It can be programmed to handle a variety of different serial communication sequences, making it a “universal” interface for the Advant system.
How many devices can I connect to one CI532V05? This depends on the protocol. For RS-232, it is a point-to-point connection (one device per port). For RS-485/Modbus, multiple devices can be daisy-chained on a single port, typically up to 31 slaves.
Does this module support Ethernet communication? No, the CI532V05 is strictly for serial-based communication. For Ethernet-based multi-vendor interfacing, modules like the CI867 or CI853 for S800 I/O systems would be more appropriate.
What do the TX/RX LEDs indicate? The LEDs provide real-time visual feedback of data traffic. Blinking indicates active transmission (TX) or reception (RX) of data packets. If the LEDs are dark during a polling cycle, it indicates a wiring fault or a protocol mismatch.
