ABB CI541V1 3BSE014666R1 | Profibus DP Communication Interface Submodule

The ABB CI541V1 (3BSE014666R1) is a dedicated communication interface submodule designed for integration within the ABB Advant Controller series, specifically optimized for Profibus DP (Decentralized Periphery) networking. This module serves as a critical bridge, allowing the controller to communicate seamlessly with field devices such as sensors, actuators, and motor drives over a high-speed serial bus. Engineered for industrial resilience, the CI541V1 ensures reliable data exchange and diagnostic capabilities, making it a cornerstone for distributed control architectures.

Technical Specifications and Datasheet

The following specifications detail the hardware and performance characteristics of the CI541V1 module.

Core Parameters

  • Product ID: 3BSE014666R1

  • Model Designation: CI541V1

  • Protocol: Profibus DP

  • Interface Speed: Up to 12 Mbit/s

  • Compatibility: ABB Advant OCS / AC400 Series

Physical Attributes

  • Dimensions: 135 mm x 45 mm x 110 mm

  • Weight: 0.65 kg

  • Country of Origin: Sweden

  • Power Consumption: 2.5W (Typical)

Applications and Industrial Use

The CI541V1 is utilized in complex automation environments where decentralized intelligence is required. Key application areas include:

  • Manufacturing: Connecting PLC systems to remote I/O stations across assembly lines.

  • Metals & Mining: Coordinating heavy-duty drives and conveyor systems in harsh conditions.

  • Pulp & Paper: Integrating distributed measurement sensors across large-scale production machinery.

  • Marine & Offshore: Facilitating robust communication between shipboard control systems and engine room instrumentation.

Product Instructions and Operation

Proper handling of the ABB CI541V1 3BSE014666R1 is essential for maintaining network integrity:

  1. Installation: Insert the submodule into the designated slot on the carrier board or baseplate. Ensure the locking mechanism is engaged to prevent vibration-induced disconnection.

  2. Bus Termination: Profibus networks require active termination at both ends. Ensure the physical switches or external terminators are correctly set to avoid signal reflection.

  3. Addressing: Assign a unique station address via the software configuration tool (such as Control Builder) before commissioning.

  4. Shielding: Use high-quality Profibus-certified cables. Ensure the cable shield is properly grounded at the entry point of the cabinet to mitigate electromagnetic interference.

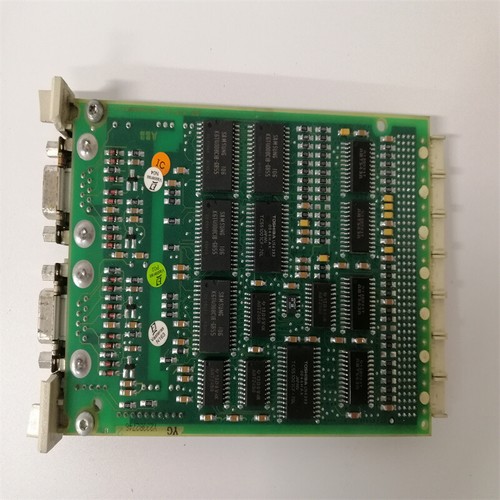

ABB CI541V1 3BSE014666R1 Profibus Interface Submodule

Frequently Asked Questions (Q&A)

Q1: Can the CI541V1 be used as a Profibus Master or Slave? A1: The CI541V1 is typically configured as a Master interface within the Advant Controller environment, allowing it to control multiple Slave devices on the Profibus network.

Q2: What is the maximum cable length supported? A2: This depends on the transmission speed. At 1.5 Mbit/s, the segment length is typically 200 meters, while at 12 Mbit/s, it is limited to 100 meters without repeaters.

Q3: How do I identify a communication failure? A3: Monitor the front-panel LED indicators. A steady red “ERR” light usually indicates a configuration mismatch or a physical break in the bus line.
