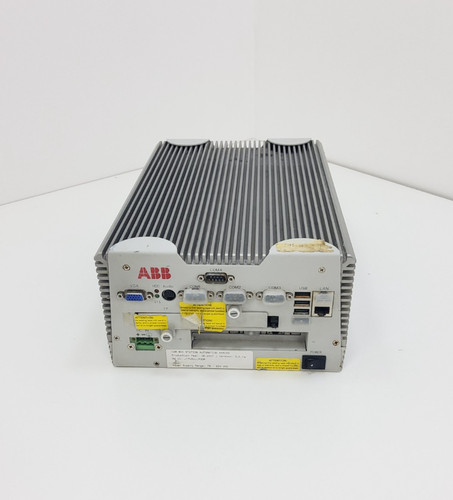

The ABB COM615HRMAASA / JTPGSUJLPQOR is a versatile grid automation controller designed for compact substation environments, providing seamless data concentration and protocol conversion between field devices and higher-level control systems.
Product Introduction
The ABB COM615HRMAASA / JTPGSUJLPQOR is part of the COM600 series family, specifically tailored as a high-reliability gateway for medium-voltage substations. It bridges the gap between field-level Intelligent Electronic Devices (IEDs) and SCADA systems by utilizing the IEC 61850 standard. This specific hardware configuration is optimized for rack-mount installations, offering a centralized point for process data, event logging, and logic execution. It enables utilities and industrial plants to modernize their power distribution networks with enhanced visibility and remote management capabilities.
Product Datasheet and Technical Specifications
This controller is built for precision and long-term stability in electrical environments. Key technical parameters include:
-
Model Type: COM615 (Compact/Rackmount variant)
-
Configuration Code: JTPGSUJLPQOR (Specific hardware/software build)
-
Processor: High-performance industrial CPU
-
Storage: Solid-state memory for system firmware and data persistence
-
Communication Interfaces: Dual Ethernet ports for redundancy and multiple Serial ports (RS-232/485)
-
Supported Protocols: IEC 61850 (Client/Server), Modbus TCP/RTU, DNP3, and IEC 60870-5-101/104
-
Power Supply: Wide-range industrial power input
-
Environmental Rating: Fanless design with high electromagnetic compatibility (EMC)
Country of Origin
This advanced automation component is designed and manufactured by ABB in Finland, ensuring compliance with European power engineering standards.
Application Fields
The COM615 series is widely utilized in various energy and industrial sectors:
-
Secondary Substations: Providing data concentration for ring main units (RMUs).
-
Industrial Microgrids: Managing power distribution for large manufacturing facilities.
-
Renewable Energy Integration: Connecting wind and solar plant protection relays to central dispatch.
-
Smart Grid Upgrades: Enabling legacy substations to communicate via modern Ethernet-based protocols.
-
Commercial Building Power: Monitoring large-scale power distribution in hospitals and data centers.
Product Usage Instructions
For proper operation, the COM615HRMAASA should be installed in a protected control cabinet or rack. Configuration is managed through the ABB Station Automation Builder (SAB) tool, which allows users to import IED Capability Description (ICD) files and map signals to the desired master protocol. Ensure all grounding connections are secure to prevent electrical interference. It is vital to configure the internal firewall and user access controls during commissioning to maintain the cybersecurity integrity of the substation network.
Product Technical Description
The COM615 functions as a cross-communication gateway and a localized automation server. It features an integrated OPC server architecture that allows it to handle thousands of data points with low latency. The “HRMAASA” designation typically refers to specific hardware revisions including power supply type and interface density, while the “JTPGSUJLPQOR” suffix identifies the pre-installed software packages and licensed protocols. The unit supports peer-to-peer communication (GOOSE) according to IEC 61850, allowing for fast, horizontal communication between relays for interlocking and protection schemes.
Common Questions and Answers (Q&A)
Q: Can this unit handle legacy serial protocols? A: Yes, it is designed to integrate older serial-based IEDs (using Modbus RTU or IEC 101) and convert their data into modern IEC 61850 or DNP3 formats for the SCADA master.
Q: Does it have a built-in HMI? A: This model supports a web-based HMI that can be accessed through a browser, providing local or remote visualization of single-line diagrams and alarm lists.
Q: Is the software pre-loaded? A: Yes, the JTPGSUJLPQOR string specifies the factory-loaded software image, though specific site engineering must be performed using the SAB tool.
Q: What happens during a power failure? A: The device uses non-volatile memory to ensure all configuration data and the most recent event logs are preserved without the need for a battery backup.
Similar Model Recommendations
-
ABB COM600S (Station Automation Series)
-
ABB COM605 (Grid Automation Gateway)
-
ABB RTU520 (Modular Remote Terminal Unit)
-
ABB REF615 (Feeder Protection and Control Relay)
-
ABB ARG600 (Industrial Grid Router)
