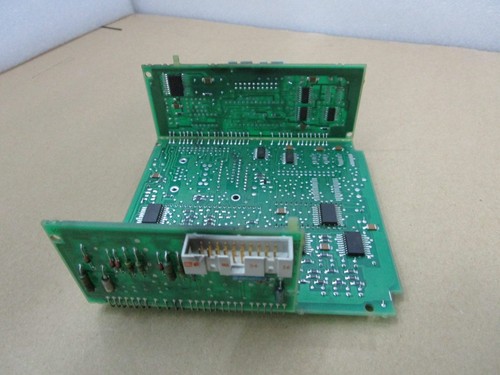

The ABB DSPC406 (57310001-EU) is a high-performance processor board designed for the MasterPiece 200/1 series and related Advant OCS control systems. This module acts as the central intelligence for complex control loops, executing high-speed logic and managing data communication across the system bus. Engineered for mission-critical industrial applications, the DSPC406 is characterized by its robust architecture, long-term reliability, and ability to handle intensive computational tasks in real-time environments.
Technical Specifications and Datasheet
The following specifications detail the core operational and physical properties of the DSPC406 module.
Core Parameters
-
Product ID: 57310001-EU
-
Model Designation: DSPC406 / DSPC-406
-
Module Type: Central Processor Board
-
System Compatibility: MasterPiece 200/1, Advant OCS
-
Power Consumption: +5V DC (System standard)
Physical Attributes
-
Dimensions: 233.35 mm x 160 mm (Standard Eurocard 6U)
-
Weight: 0.72 kg
-
Country of Origin: Sweden
-
Operating Temperature: 0°C to +55°C
Applications and Industrial Use
The DSPC406 is a cornerstone of legacy and upgraded ABB control systems, widely used in:
-
Pulp & Paper Mills: Managing complex logic for paper machine drives and wet-end chemistry control.
-
Metal Processing: Controlling high-speed rolling mills and furnace temperature regulation.
-
Power Distribution: Serving as the main controller for substation monitoring and load shedding sequences.
-
Marine Systems: Handling engine room automation and power management on large vessels.
Product Instructions and Operation
To ensure the stable operation of the ABB DSPC406 57310001-EU, please follow these technical instructions:
-
Handling: This board is highly sensitive to Electrostatic Discharge (ESD). Use an antistatic mat and wrist strap during installation or maintenance.
-
Installation: Insert the board into the designated subrack slot. Ensure the multi-pin connectors are clean and free of oxidation before seating the module. Tighten the front panel screws to ensure a proper ground connection.
-
Battery Maintenance: Some processor boards in this series use a backup battery for memory retention. Check the battery voltage during scheduled maintenance to prevent loss of program data during power outages.
-
Firmware Verification: Ensure that the EPROM or flash memory installed on the board matches the version required by your system software to avoid “Configuration Mismatch” errors.
Frequently Asked Questions (Q&A)
Q1: Can I replace a DSPC401 with a DSPC406? A1: While they belong to the same family, the DSPC406 often has different memory capacities or processing speeds. Always consult your system’s hardware configuration manual before attempting a direct swap.
Q2: What do the status LEDs on the front panel indicate? A2: Typically, a green LED indicates “RUN” mode, while a red LED indicates a “HALT” or “FAULT” condition. If the fault light is flashing, it often points to a parity error or a communication failure on the bus.
Q3: Is this board compatible with modern Ethernet-based communication? A3: The DSPC406 natively communicates via the MasterBus 300 or similar proprietary protocols. Connecting to Ethernet usually requires an external gateway or a specific communication interface module.
