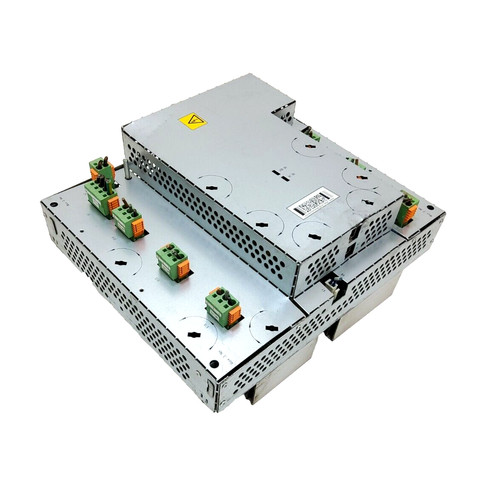

The ABB DSQC406 (Part Number: 3HAC035301-001/03) is a critical high-performance servo drive unit designed for the ABB IRC5 industrial robot controller series. This unit acts as the power interface between the robot controller and the motors, precisely regulating the current and voltage required to control the movement of robot axes. It is engineered for high-speed precision, energy efficiency, and thermal stability in heavy-duty manufacturing environments such as automotive assembly and material handling.
Product Specifications (Datasheet)
-
Model: DSQC406
-
Part Number: 3HAC035301-001/03
-
Dimensions: 270 mm x 180 mm x 95 mm (H x W x D)
-
Weight: 4.25 kg
-
Country of Origin: Sweden
-
Compatibility: ABB IRC5 Controller / M2004 Series
-
Input Voltage: 400-600 VAC (Rectified DC Link)
-
Cooling System: Integrated Heat Sink / Forced Air
-
Communication Interface: Optical Fiber / DriveBus
-
Safety Rating: SIL 3 / PL e (Integrated with Safety Board)
Key Application Fields
-
Automotive Manufacturing: Controlling high-precision welding and painting robot arms.
-
Electronics Assembly: Providing smooth, rapid movements for pick-and-place operations.
-
Palletizing & Logistics: Managing high-torque demands for heavy lifting and stacking.
-
Foundry & Casting: Reliable performance in high-heat and harsh industrial settings.
Product Usage Instructions
-
Safety First: Ensure the IRC5 controller is fully powered down and the DC link is discharged before installation to prevent electrical shock.
-
Mounting: Install the unit vertically within the drive module of the controller cabinet. Ensure all mounting screws are tightened to maintain proper grounding.
-
Wiring: Connect the power bus bars and the motor output cables. Use the designated optical fiber cables for communication with the main computer to ensure noise-free signal transmission.
-
Configuration: Once installed, the system will typically auto-detect the drive. Update the robot’s configuration files if the drive is replacing a different revision or model.
-
Thermal Check: Verify that the cooling fans are functional and that the airflow path is not obstructed by dust or debris.
Q&A: Frequently Asked Questions
Q: Can I swap a DSQC406 with a DSQC663 drive? A: No, these units have different power ratings and communication protocols. You must use the specific part number (3HAC035301-001/03) designed for your robot’s motor configuration.
Q: What does a red LED on the drive status panel indicate? A: A red LED usually indicates a critical fault, such as overcurrent, overvoltage, or an internal hardware failure. Check the FlexPendant error log for the specific fault code.
Q: Is there a specific maintenance schedule for these drives? A: While the electronics are solid-state, the internal cooling fans should be inspected every 6 months, and the unit should be cleaned of metallic dust annually.
Q: Does this unit support regenerative braking? A: Yes, the DSQC406 is designed to work with the IRC5’s energy recovery system, feeding kinetic energy back into the DC link during deceleration.
Find the DSQC406 and other essential ABB robotics spare parts online for your maintenance needs.
Similar Model Recommendations
-
ABB DSQC663: A common drive unit used in later IRC5 versions for specific axis control.
-
ABB DSQC346U: An older generation drive unit found in S4C+ controller systems.
-
ABB DSQC400: A basic power supply and drive unit module for smaller robot variants.
-
ABB 3HAC14549-1: A dedicated drive unit for the IRB 6600 series high-payload robots.
-
ABB DSQC619: A specialized drive module used for external axis control (e.g., track motions or positioners).
