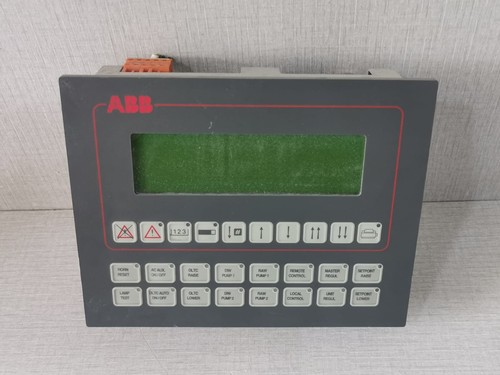

- Model: ABB HIEE200130R0002 / AF C094 AE02 / AFC094AE02
- Brand: ABB
- Series: ABB ARCnet Control Interface Series
- Core Function: Operator interface and ARCnet communication display panel
- Product Type: ARCnet Control Panel / HMI Display Module
- Key Specs: ARCnet communication LCD display interface Industrial control integration
- Supply Status: ⚠️ Legacy product, inventory availability varies by revision
- Stock: Limited surplus inventory available
- Warranty: 12 months
- Ship From: China / Switzerland / EU warehouse
- Condition: Tested surplus or new surplus stock
- Origin: Switzerland
- Typical System: ABB industrial automation and distributed control systems
Key Technical Specifications
- Product ID: HIEE200130R0002
- ABB Designation: AF C094 AE02
- Communication Protocol: ARCnet
- Display Type: LCD operator display
- User Interface: Keypad and operator navigation interface
- Network Architecture: Deterministic ARCnet industrial network
- Power Supply: 12 V DC typical operating input
- Mounting Method: Panel mount / cabinet integration
- Operating Temperature: -20 °C to +60 °C
- Dimensions: Approx. 285 mm × 21 mm × 8 mm
- Weight: Approx. 1.2 kg
- Protection Environment: Industrial cabinet installation
- System Compatibility: ABB automation and control platforms
- Typical Application: DCS monitoring and industrial communication display
- Communication Role: Operator visualization and control-network interaction
Application Scenarios & Pain Points
This panel belongs to a generation of industrial systems that engineers rarely upgrade voluntarily.
Why?
Because once ARCnet-based ABB systems are stable, plants tend to leave them untouched for years.
The AF C094 AE02 usually sits quietly inside:
- turbine control cabinets,
- process automation rooms,
- legacy ABB drive systems,
- distributed operator stations.
Then one day:
- the display freezes,
- communication drops,
- keypad inputs stop responding,
- or ARCnet nodes disappear intermittently.
And suddenly an old panel nobody noticed for 15 years becomes the most important device in the control room.
That’s the reality with legacy DCS infrastructure.
The hard part is not replacing the hardware itself…
it’s preserving compatibility with the surrounding ARCnet environment.
Typical Application Scenarios
- Power Plants – Turbine Auxiliary Monitoring
Used for operator interaction with ABB control and protection systems. - Steel Industry – Rolling Mill Control Stations
Displays process data and machine status through ARCnet-connected networks. - Pulp & Paper Mills – Distributed Process Monitoring
Interfaces with legacy ABB DCS communication architectures. - Water Treatment Facilities – SCADA Visualization
Provides operator-level monitoring and alarm acknowledgment functions. - Heavy Manufacturing – ABB Drive System Supervision
Used for local control and status display within distributed automation cabinets.
Real Project Example – “The Controller Was Fine. The Operator Couldn’t See Anything.”
A European paper mill experienced intermittent production interruptions during startup sequences.
Operators reported:
- delayed process visibility,
- frozen alarm screens,
- missing status updates.
At first, engineers suspected:
- PLC scan overload,
- ARCnet cabling issues,
- DCS controller instability.
But diagnostic logs showed:
the controllers were still communicating normally.
The actual failure point was the AF C094 AE02 display panel.
Internally:
- ARCnet communication occasionally stalled,
- display refresh cycles froze,
- operator acknowledgments never reached the control layer.
That created a dangerous situation:
the plant was still running…
but operators no longer trusted what they saw on screen.
After replacing the panel with a tested spare:
- communication stabilized,
- alarm response normalized,
- startup reliability improved immediately.
The funny part?
The process control logic never had a fault at all.
The visibility layer failed first.
That happens more often than many engineers expect in aging ARCnet systems.
Compatible Replacement Models
| Original Model | Replacement Model | Compatibility | Main Difference | Required Changes | Cost Impact |
|---|---|---|---|---|---|
| HIEE200130R0002 AF C094 AE02 | Same revision module | ✅ Direct replacement | Identical hardware and communication | None | None |
| AF C094 AE02 | Later ABB ARCnet panels | ⚠️ Software compatible | Firmware and display revisions differ | Configuration verification required | Medium |
| AF C094 AE02 | Ethernet-based ABB HMI systems | ❌ Hardware incompatible | ARCnet removed | Full network redesign | High |
| AF C094 AE02 | Third-party industrial HMIs | ❌ Not compatible | Different communication stack | Major integration work | Very high |
Practical recommendation from integration work:
If the existing ARCnet infrastructure still operates reliably, staying within the same ABB ARCnet generation usually reduces commissioning risk significantly.
Migrating only the HMI layer while keeping ARCnet underneath often creates strange compatibility problems later.
Troubleshooting Quick Reference
| Fault Symptom | Possible Cause | AF C094 AE02 Relevance | Quick Check Method | Recommended Action |
|---|---|---|---|---|
| Blank display | Power supply issue | ⚠️ Medium | Measure 12 V DC input | Verify cabinet PSU |
| Frozen screen | Internal communication lock | ✅ High | Restart panel | Replace module if recurring |
| Keypad not responding | HMI controller failure | ⚠️ Medium | Test local input response | Inspect interface board |
| ARCnet node offline | Network communication issue | ✅ High | Check ARCnet topology | Verify network integrity |
| Intermittent alarms missing | Display refresh instability | ⚠️ Medium | Monitor communication logs | Replace panel |
| No operator control feedback | ARCnet timeout | ✅ High | Review network diagnostics | Verify ARCnet traffic |
| Random reboot behavior | Aging capacitors / unstable DC | ⚠️ Medium | Thermal inspection | Replace aging unit |
| Display active but no communication | ARCnet controller fault | ✅ High | Check network handshake | Replace module |
Common Engineering Pitfalls
❗ Biggest mistake with ARCnet systems?
Treating them like Ethernet systems.
ARCnet is deterministic and timing-sensitive.
That means:
- topology matters,
- termination matters,
- node timing matters,
- firmware consistency matters.
I’ve seen engineers connect replacement hardware casually because:
“the connector fits.”
Then the entire communication network becomes unstable.
