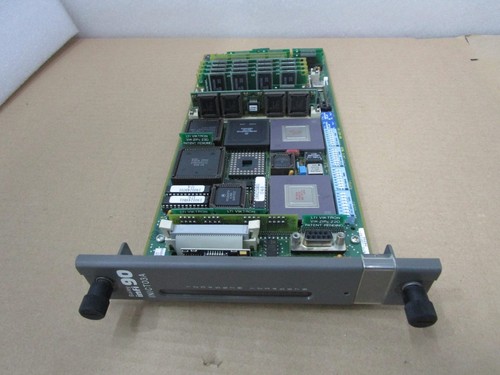

The ABB INICT03A is a high-performance interface module within the Symphony Enterprise Management and Control System (Harmony / INFI 90). This “Infi-Net to Computer Transfer” module acts as a vital gateway, enabling bi-directional data communication between the high-speed INFI-Net plant loop and a host computer or Human Machine Interface (HMI). It facilitates the transfer of process data, configuration files, and diagnostic information, allowing operators to monitor and manage complex industrial processes from a centralized workstation.
Product Specifications
Product Name: Infi-Net to Computer Transfer Module Model Number: INICT03A Series: Symphony Harmony / INFI 90 Network Compatibility: INFI-Net (High-speed plant loop) Interface Type: RS-232-C or RS-485 (Computer side) Data Rate: Up to 19.2 kbaud (Serial) / 2 MB (Loop) Power Requirements: +5 VDC, +15 VDC, -15 VDC Dimensions: 355 mm x 177 mm x 25 mm Weight: 0.72 kg Country of Origin: USA
Application Areas
The INICT03A is essential for integrated control environments in heavy industry:
-
Power Generation: Interfacing boiler and turbine control loops with the operator station for real-time monitoring.
-
Petrochemical Refining: Connecting process controllers to engineering workstations for remote configuration and data logging.
-
Water Treatment: Managing distributed assets across large municipal facilities through a centralized HMI.
-
Pulp and Paper: Facilitating data exchange between multi-stage production lines and plant-wide management systems.
Usage Instructions
To ensure the successful integration of the INICT03A:
-
Hardware Setup: Before inserting the module into the INFI 90 cabinet, set the onboard dip switches to define the unique module address on the INFI-Net loop and the communication parameters for the serial port.
-
Installation: Ensure the module is properly aligned with the card guides in the MMU (Module Mounting Unit). Press firmly to seat the edge connectors into the backplane.
-
Cabling: Connect the shielded serial cable from the INICT03A to the host computer’s COM port. Ensure the cable length does not exceed standard RS-232 specifications to avoid signal degradation.
-
Software Configuration: Utilize the Composer or WinTools engineering software to initialize the interface and map the necessary data points from the plant loop to the computer database.
Q&A – Frequently Asked Questions
What is the primary difference between the INICT03A and the INICT13? The INICT03A is a standard serial transfer module, whereas the INICT13 typically offers enhanced communication speeds and may support different physical layer protocols or higher density data handling.
Does this module require a separate termination unit? Yes, the INICT03A is usually paired with a specific termination unit (such as the NTMP01) and a dedicated cable (NKMP01) to bridge the physical connection to the external computer.
What does the ‘Status’ LED indicate? A solid green LED indicates the module is powered and functional. A red LED or flashing pattern usually signifies a hardware failure or a conflict in the module address settings on the loop.
Can I hot-swap this module? While INFI 90 modules are designed for durability, it is recommended to disable the specific node in the software and exercise caution when swapping to prevent communication “glitches” on the INFI-Net loop.
