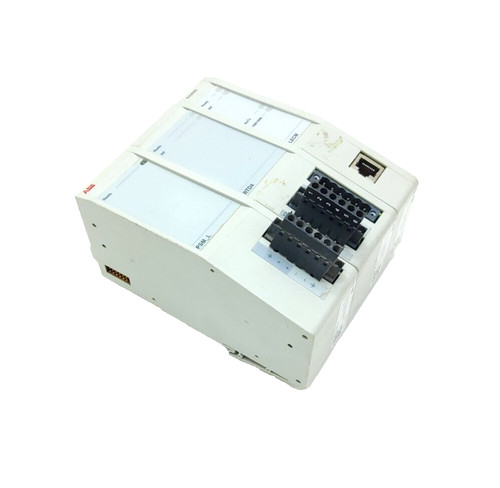

The ABB MOD600FLECMIR represents a critical component in the MOD 600 series, often utilized in high-speed communication and signal processing within distributed control environments. This series is engineered for seamless integration into legacy and modern ABB Advant or MOD 300 systems, providing robust hardware reliability for complex industrial loops. When paired with the MOD600ARTD4 Resistance Temperature Detector module and the MOD600APSML07 Power Supply module, it forms a complete processing node capable of high-precision monitoring and sustained operation in volatile environments.
Product Technical Specification
These modules utilize a high-density backplane architecture designed for low-latency data throughput. The FLECMIR unit handles the logic and communication interface, utilizing specialized ASICs for real-time diagnostics. The ARTD4 module features 4-channel high-resolution analog-to-digital conversion specifically tuned for platinum or nickel RTD sensors, ensuring temperature drift is minimized. The APSML07 power module provides filtered, regulated DC power with built-in surge protection and thermal shutdown capabilities to protect the internal logic of the rack.
Product Parameters
Product Series: ABB MOD 600 Main Controller Model: MOD600FLECMIR Input Module Model: MOD600ARTD4 (RTD Input) Power Module Model: MOD600APSML07 Input Type: PT100, PT1000, 2/3/4-wire RTD (for ARTD4) Input Channels: 4 Isolated Channels (ARTD4) Input Voltage: 24V DC / 110V AC (System Dependent) Output Accuracy: 0.1% of Full Scale Communication Interface: High-speed Serial/Fieldbus Isolation Voltage: 1500V AC Enclosure Rating: IP20 Standard
Country of Origin
United States / Switzerland (ABB Industrial Solutions)
Application Fields
-
Chemical Processing: Monitoring reactor core temperatures where precision is mandatory for safety and yield.
-
Power Generation: Managing turbine bearing temperatures and auxiliary power distribution status.
-
Pulp and Paper: Controlling large-scale drying cylinders and steam flow synchronization.
-
Refining: Integration into emergency shutdown systems for furnace and distillation column monitoring.
Product Instructions for Use
-
Module Seating: Insert the MOD600APSML07 into the primary power slot of the rack. Ensure the locking tabs are fully engaged.
-
Logic Setup: Install the MOD600FLECMIR into the CPU/Communication slot. Configure the station address via the software engineering tool or hardware switches.
-
Sensor Wiring: Connect RTD probes to the MOD600ARTD4 using shielded twisted-pair wiring. For maximum accuracy, use 4-wire configurations to compensate for lead resistance.
-
Power On: Verify all ground connections are secure before applying primary power. Observe the LED status indicators; a steady green ‘Run’ light indicates normal operation.
-
Maintenance: Periodically check the APSML07 output voltage to ensure it remains within the ±5% tolerance range to prevent logic errors.
Q&A – Frequently Asked Questions
Q: Can the MOD600ARTD4 support thermocouple inputs as well? A: No, the ARTD4 is specifically designed for Resistance Temperature Detectors. For thermocouples, a dedicated MOD600 Analog Input module (such as an AITC type) is required.
Q: What is the primary function of the MOD600FLECMIR? A: It acts as the “brain” or the communication bridge for the rack, managing the flow of data between the local I/O modules and the upper-level controller or HMI.
Q: Is the MOD600APSML07 hot-swappable? A: While many ABB modules support hot-swapping, it is highly recommended to check your specific rack configuration. Swapping the primary power supply while the system is live can cause a temporary drop in logic voltage, potentially resetting the controller.
