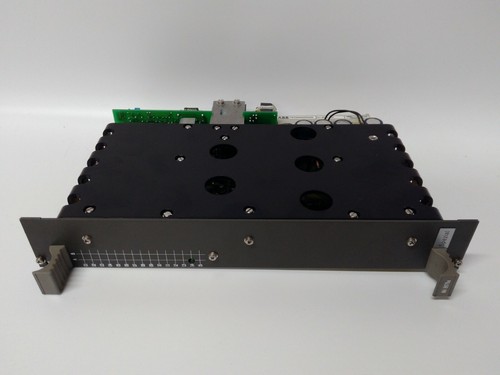

The ABB NU8976A99 HIER466665R0099 (associated with assembly code HIEE320693R0001) is a high-performance industrial controller microprocessor board. Developed for specialized heavy-duty applications within ABB’s legacy Distributed Control Systems (DCS) and power electronics subracks (such as Advant OCS, 800xA components, or excitation drive controllers), this processor module handles high-speed data calculations, real-time control routines, and structural data conversion paths. It provides the core computational intelligence required to monitor field inputs and coordinate precise output signals in high-density process automation frames.
Technical Datasheet and Specifications
Model Configuration: NU8976A99 Functional Part Number: HIER466665R0099 Sub-Assembly / Base Number: HIEE320693R0001 Manufacturer Brand: ABB Product Classification: Processor Microprocessor Module Country of Origin: Sweden / Switzerland Physical Net Weight: 0.18 kg Module Board Width: 197 mm Module Board Depth: 148 mm Module Board Height: 15 mm Control Architecture: Dedicated high-stability embedded microprocessor core Signal Conversion Capacity: Integrated high-precision digital-to-analog and analog-to-digital data processing Interface Configuration: High-density multi-pin backplane connectors for system bus integration Mounting Orientation: Supports vertical or horizontal alignment within standard rack guide housings Nominal Input Operating Line: 24 VDC standardized control voltage Output Drive Parameters: Configurable 0-10 VDC / 0-20 mA auxiliary signal tracking paths Operating Temperature Envelope: -40°C to +85°C (-40°F to 185°F) heavy industrial rating Storage Temperature Envelope: -40°C to +85°C (-40°F to 185°F) complete bounds Atmospheric Relative Humidity: 5% to 95% non-condensing operating boundary Onboard Safety Elements: Low-voltage circuit protection, overload mitigation, and short-circuit monitoring
Industrial Application Fields
Power Electronics and Drives: Main processing interface within heavy variable frequency drive configurations and synchronous machine excitation systems. Large Scale Power Generation: Running synchronized loop tracking algorithms across water-steam cycles, boiler feeds, and turbine monitoring layers. Distributed Control Systems (DCS): Serving as a processing node within hybrid control racks to bridge digital automation fields and field instruments. Harsh Process Environments: Deployment inside chemical processing, pulp and paper facilities, and steel rolling mills requiring continuous computation.
Comprehensive Product Instructions
Handling Requirements: This high-density processor card is populated with sensitive static-susceptible components. Wear a properly grounded ESD anti-static wrist strap throughout all unboxing, handling, and maintenance steps. Subrack Mounting: Verify that all primary and auxiliary backplane power distribution sources are disconnected. Align the thin circuit card rails with the plastic guide channels of the host subrack frame. Push the card inward smoothly until the multi-pin DIN interface is seated securely. Hand-tighten all captive front screws. Firmware and System Binding: Connect the dedicated engineering workstation to the controller terminal port. Load the original system application templates or drivers to assign the unique station bus identity code, ensuring proper network tracking across the common data ring. Operational Startup: Apply system power and check the front-panel indicator array. The status module should pass its power-on self-test (POST) sequence and switch to an active active run state without triggering system bus communication errors.
Frequently Asked Questions Q&A
Question: What is the relationship between the numbers NU8976A99, HIER466665R0099, and HIEE320693R0001? Answer: NU8976A99 denotes the overarching model series designator. HIER466665R0099 represents the specific functional processor module part number assigned by ABB, while HIEE320693R0001 refers to the underlying hardware board or base sub-assembly framework on which the processing circuit is built.
Question: Can this card be mounted on a standard external DIN rail profile without a backplane enclosure? Answer: No. The card requires a dedicated ABB system subrack or rack housing setup. It draws its operational processing power and connects to the common communication bus through the proprietary multi-pin connectors located on its rear panel.
Question: What indicates an internal processing failure on the board rather than an external network fault? Answer: A persistent red error indicator paired with a failure to complete the startup sequence indicates a core processing fault, which requires replacing the hardware unit or performing factory-level diagnostics.
Product News and Industry Updates
The longevity of legacy ABB DCS, excitation systems, and processing frames depends heavily on the availability of trusted, high-performance spare components. As manufacturing technologies trend toward next-generation digitized platforms, field-proven processor modules like the HIER466665R0099 continue to serve as vital lifecycle assets for continuous-process facilities. Rather than investing in full, capital-intensive control infrastructure overhauls, engineering teams are increasingly focused on sourcing genuine, refurbished, or surplus processor units to maintain robust control loops. This approach allows plants to meet modern regulatory standards while ensuring long-term operational stability and cost-efficiency.
Explore further specification sheets, check current stock configurations, and request quotes on the NU8976A99 dedicated technical index.
