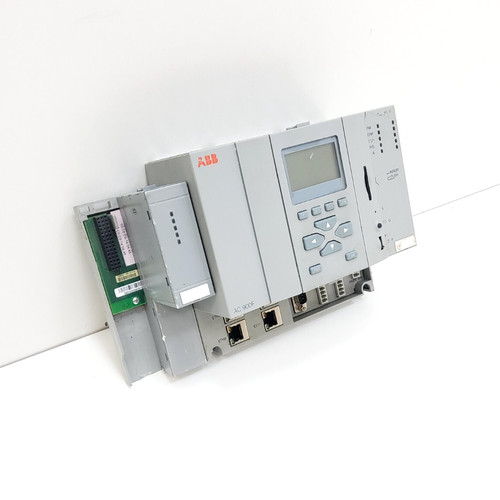

The ABB PM 902F is a high-performance central processing unit for the AC 900F controller family within the Freelance distributed control system (DCS), offering expanded memory and increased processing power to handle complex automation tasks and high-speed data processing in demanding industrial environments.
Product Introduction
The PM 902F is a key component of the ABB Freelance system, designed to bridge the gap between small PLC applications and large-scale DCS installations. It serves as the “brain” of the AC 900F process station, managing communication, control logic, and I/O integration. This controller is known for its robustness, ease of configuration, and high availability, making it a staple in modern process automation.
Product Technical Description
This processor module features a modular architecture that supports redundant configurations to ensure maximum uptime. It utilizes Ethernet-based communication for both the plant bus and the integrated I/O modules. The PM 902F supports various fieldbus protocols, including PROFIBUS DP, PROFINET, and Modbus TCP/RTU, allowing it to interface with a vast array of field devices and third-party systems. Its internal hardware is optimized for low power consumption and fanless operation.
Product Parameters and Datasheet
The PM 902F is equipped with 16 MB of battery-buffered RAM and 8 MB of Flash memory for application program storage. It operates on a 24 V DC power supply and features a 32-bit RISC processor. The unit includes multiple built-in interfaces: four Ethernet ports (10/100 Mbit/s) for flexible networking and two serial ports for local diagnostics or legacy device integration. It is rated for an operating temperature range of 0°C to +60°C and meets IP20 protection standards.
Country of Origin
The ABB PM 902F is primarily manufactured in Germany, ensuring compliance with strict European industrial quality and safety regulations.
Application Areas
This process station is widely used in industries such as chemical processing, water and wastewater treatment, food and beverage production, and oil and gas. It is particularly effective in applications requiring precise regulatory control, sequence control, and extensive data monitoring across distributed plant locations.
Product Instructions
Installation should be performed on a standard DIN rail within a controlled electrical cabinet. The module is configured using the Freelance Engineering software tool (Control Builder F), which provides a unified environment for hardware configuration and logic programming. Maintenance involves periodic checks of the backup battery status via the front-panel LED indicators and ensuring adequate ventilation within the cabinet to prevent overheating.
Q&A: Frequently Asked Questions
Can the PM 902F be used in a redundant setup? Yes, two PM 902F modules can be configured as a redundant pair to provide seamless failover protection, ensuring the process remains controlled even if one processor fails.
What programming languages does it support? It supports all IEC 61131-3 compliant languages, including Function Block Diagram (FBD), Ladder Diagram (LD), and Sequential Function Chart (SFC), all managed through the Freelance Engineering suite.
Is the memory expandable? The memory is fixed at 16 MB RAM, which is significantly higher than the base PM 901F model, providing sufficient space for most large-scale process applications.
Similar Model Recommendations
-
ABB PM 901F (Standard AC 900F CPU)
-
ABB PM 803F (Freelance AC 800F Controller)
-
ABB PM 783F (Compact Freelance Controller)
-
ABB CI 930F (AC 900F Communication Interface)
-
ABB PM 866 (800xA System Controller)
