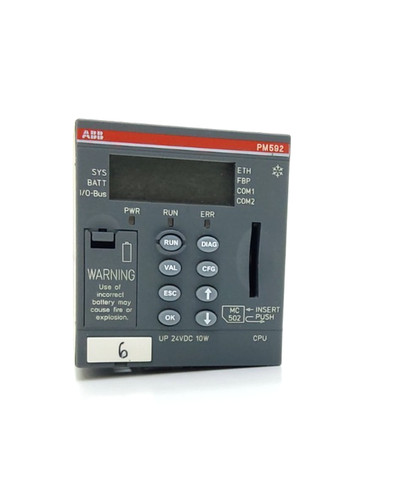

The ABB PM592-ETH-XC (part number 1SAP350200R0271) is a high-performance central processing unit from the AC500 PLC platform, specifically engineered for Extreme Conditions (XC). This CPU is designed to operate in harsh environments where standard electronic components might fail, featuring increased resistance to high altitudes, corrosive gases, moisture, and extreme temperature fluctuations. With 512 KB of program memory and integrated Ethernet connectivity, it serves as a powerful controller for complex industrial automation tasks requiring high reliability.
Product Specifications
-
Product ID: 1SAP350200R0271
-
Type Designation: PM592-ETH-XC
-
Dimensions: 67.5 mm x 76 mm x 82 mm
-
Weight: 0.15 kg
-
Country of Origin: Germany
-
Processor Speed: High-speed execution for complex logic and floating-point math
-
Program Memory: 512 KB
-
Onboard Communication: Ethernet (RJ45) and two serial interfaces
-
Operating Temperature: -40°C to +70°C (Extended XC range)
-
Protection Level: G3 compliant (Conformal coating for corrosive environments)
Application Fields
The XC (Extreme Conditions) variant of this CPU is ideal for demanding sectors such as wind power (nacelle mounting), marine and offshore operations, water/wastewater treatment plants in outdoor environments, and transportation infrastructure. Its ability to withstand vibrations and salt mist makes it a preferred choice for tunnel ventilation control and railway power distribution systems where environmental stability cannot be guaranteed.
Product Instructions
The PM592-ETH-XC must be mounted on a compatible ABB terminal base (e.g., TB5xx-XC). Ensure that the terminal base is securely fixed to a DIN rail before snapping the CPU into place. Given its high-performance nature, adequate ventilation should be maintained within the enclosure, even though the unit is rated for high temperatures. Configuration is performed using the ABB Automation Builder software suite via the Ethernet port. During wiring, use shielded Ethernet cables to maintain signal integrity in high-EMI (Electromagnetic Interference) environments.
FAQ: Common Questions and Answers
Q: What is the main difference between the PM592-ETH and the PM592-ETH-XC? A: The “XC” version features a special conformal coating and hardened hardware components that allow it to operate in extreme temperatures and corrosive atmospheres (G3 gas resistance), whereas the standard version is for controlled indoor environments.
Q: Can this CPU be used for motion control applications? A: Yes, the PM592 has the processing power and memory capacity to handle complex motion control tasks when paired with the appropriate communication modules and software libraries.
Q: Does it support SD cards for data logging? A: Yes, the front panel includes a slot for an SD card, which can be used for firmware updates, project backups, or storing long-term process data logs.
Find detailed technical parameters and stock availability for the ABB PM592-ETH-XC through our specialized distribution network.
