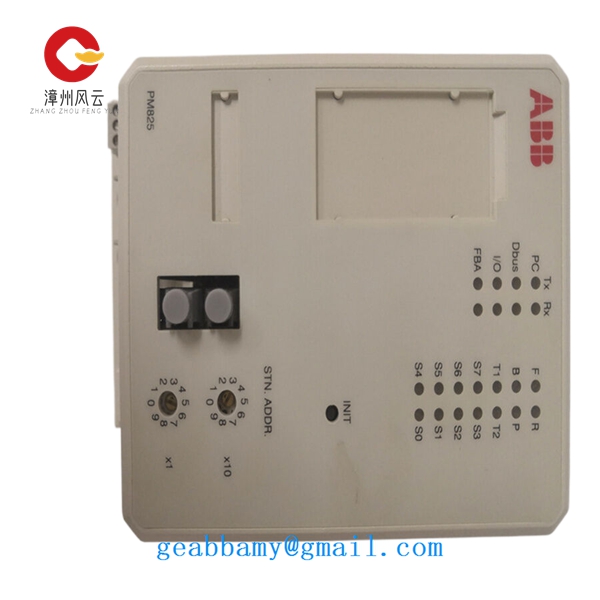

ABB PM825 3BSE010796R1 Processor Module

ABB PM825 3BSE010796R1 Processor Module Technical Overview

The ABB PM825 3BSE010796R1 is a high‑performance processor module made for the ABB AC800M distributed control system. It runs control logic, handles data exchange, and manages redundant network paths. The PM825 uses a 32‑bit industrial CPU that runs at 600 MHz and has 256 MB of DRAM plus 128 MB of flash memory for firmware and data logging. It supports hot‑swap replacement so it can be changed without shutting down the system. The module fits into a standard rack chassis and connects to the backplane via a 96‑pin connector. It uses a 24 V DC supply that draws under 8 W in normal operation. Four LEDs on the front panel show power, CPU status, network link, and error conditions. The module boots in under 3 s and loads the control application in under 10 s. It supports online firmware updates and stores up to ten versions for rollback if needed. All I/O tasks run on a real‑time operating system with cycle times down to 10 ms for critical loops.

The PM825 module is built for industrial use and it works in harsh environments. It runs in temperatures from –25 °C to +70 °C. It resists vibration up to 2 g at 10–150 Hz and shock up to 15 g for 11 ms. The board meets IEC 61000‑4 immunity standards for electrostatic discharge (±4 kV), radiated RF (10 V/m), and fast transients (±2 kV). On the chassis side it has dual Gigabit Ethernet ports with status LEDs and integrated surge protection. It also has a serial port for local diagnostics and a USB port for loading configuration files. The chassis guide and latch design let engineers install or remove the module easily by hand. No special tools are needed. The front panel includes a dedicated push‑button that can freeze the CPU state for debugging or trigger a forced restart when network communication fails. All connectors use locking tabs to keep cables secure. The module firmware includes a watchdog timer that resets the CPU if the operating system stops responding. This all keeps the module running and reduces unscheduled downtime.

The push for smart factories and digital twins is driving new demand for advanced processor modules like the PM825. A 2025 automation market study shows that the DCS market is growing at 8 percent per year, led by modules with built‑in diagnostics and fast update cycles. End users report that systems with redundant, hot‑swappable CPUs reduce unscheduled stoppages by up to 20 percent. The PM825 supports this trend by logging runtime diagnostics and network statistics in real time. It also integrates with ABB’s Asset Management software for condition‑based maintenance. Zhangzhou Fengyun Electric Equipment Co., Ltd. is a top distributor for ABB and other leading automation brands. The company stocks a wide range of PLC and DCS modules, I/O cards, power supplies, and sensors. Their strong import/export network and large inventory mean fast delivery worldwide. Their technical team can handle system integration, on‑site commissioning, and after‑sales support. Sales Engineer Amy is ready to help at +86 153 5902 9662 or geabbamy@gmail.com. For more information visit their official site, browse the product catalog, or submit an inquiry via the contact page.
