Abb PTPU-02 3HNA023148-001 Paint Teach Pendant

The ABB PTPU-02 (Part Number: 3HNA023148-001) is a specialized Teach Pendant designed specifically for ABB’s robotic paint and surface finishing systems. Unlike standard industrial teach pendants, the PTPU-02 is optimized for the intricate, motion-intensive requirements of painting robots. It provides precise control over atomization, fluid flow, and robotic arm trajectory, ensuring high-quality, uniform coating application in automotive and industrial paint booths.

⚙️ Technical Parameters and Specifications

  • Part Number: 3HNA023148-001

  • Device Type: Paint-Specific Teach Pendant

  • Compatibility: ABB Paint Robot Controllers (e.g., IRC5P)

  • Interface: Ergonomic keypad with paint-specific function keys (Air/Paint trigger control)

  • Cable: Integrated high-flex, chemical-resistant umbilical cable

  • Enclosure: Sealed, solvent-resistant casing (essential for paint booth environments)

  • Weight: Approximately 1.8 kg

  • Country of Origin: Sweden / Germany

🏭 Application Areas

  • Automotive Painting: Precise programming of robotic arms for consistent paint film thickness on car bodies and components.

  • Industrial Finishing: Application of protective coatings and industrial paint to large components and heavy machinery.

  • Paint Booth Calibration: Real-time adjustment of spray parameters (fluid flow, shaping air, atomization air) during robotic motion programming.

  • Robotic Maintenance: Used for jog control, diagnostics, and program troubleshooting within the paint cell.

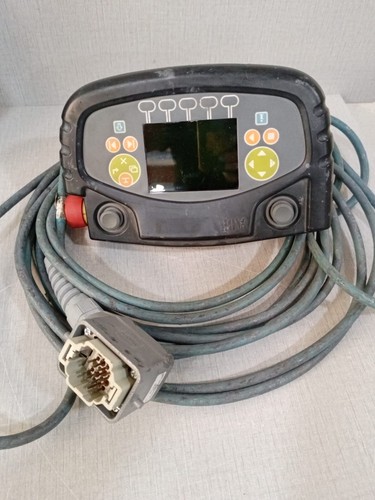

  • Abb PTPU-02 3HNA023148-001 Paint Teach Pendant

📖 Product User Guide

Installation must be performed while the robot is in a safe, de-energized, or “Emergency Stop” state. Connect the umbilical cable to the teach pendant port on the robot controller cabinet. Ensure the threaded connector is fully tightened to maintain the ingress protection (IP) rating. Upon power-up, the unit will boot into the paint-specific firmware environment. When programming, use the dedicated paint function keys to test spray patterns without moving the robot, then use the “Jog” functions to record the path. Always store the unit in its designated cradle outside the direct spray path when not in use to prevent solvent buildup and accidental damage.

❓ Frequently Asked Questions (Q&A)

How is the PTPU-02 different from a standard IRB teach pendant? The PTPU-02 includes hardware keys and software hooks specifically for managing paint process variables, such as gun triggering and air pressure regulation, which are not present on standard material handling pendants.

What should I do if the keys become sticky or unresponsive? Paint environments are harsh. If keys become unresponsive, clean the overlay with an approved solvent (as specified in your maintenance manual). Never use harsh abrasives. If internal contacts are damaged by solvent ingress, the overlay or the entire pendant will need replacement.

Can this pendant be used on standard IRC5 controllers? No. While it connects to the IRC5P cabinet, the PTPU-02 requires the specific paint application software installed on the robot controller to function correctly.

📋 Recommended Similar Models

  1. ABB FlexPendant (Standard material handling version)

  2. ABB S4C+ Paint Teach Pendant (Legacy version)

  3. Fanuc PaintTool Teach Pendant (Alternative paint application device)

  4. Yaskawa Motoman Paint Teach Pendant

  5. Stäubli Paint Robot Controller Interfaces
