📊 Technical Specifications
| Feature | Specification |
| Model | REJ521 |
| Variant | B416BAA |
| Product Type | Feeder Protection Relay |
| Application | Medium-Voltage Distribution Networks |
| Measurement | Current, Voltage, Frequency, Power |
| Communication | Modbus RTU, SPA-bus |
| Housing | Draw-out Design |
| Standards | IEC 60255 |

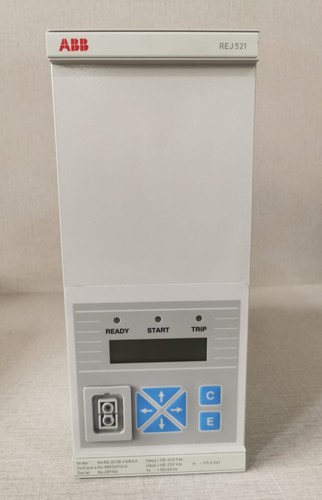

The REJ521 (B416BAA) is an advanced feeder protection relay designed for the protection, control, measuring, and supervision of utility and industrial power systems. It provides comprehensive protection against overcurrent, earth faults, and other network disturbances. With its user-friendly interface and highly reliable hardware, the REJ521 ensures fast fault isolation and accurate data reporting in medium-voltage distribution switchgear.
📰 Product News & Industry Context
ABB’s REJ521 series is widely recognized for its robustness in demanding electrical environments. Recent updates focus on enhanced cybersecurity integration within the communication protocols and improved diagnostic algorithms for detecting high-impedance faults. As power grids become more decentralized, the REJ521 remains a vital component for ensuring the stability and protection of distribution feeders against transient network anomalies.
⚙️ Operating Instructions & Usage
-
Installation: Ensure the relay is mounted in a vibration-free environment within the switchgear cabinet. Connect the CT (current transformer) and VT (voltage transformer) inputs according to the wiring diagram provided in the user manual.
-
Configuration: Use the ABB relay configuration tool (or local HMI) to set trip curves, nominal currents, and communication parameters. Verify all settings against the grid protection study.
-
Testing: Use secondary injection test equipment to verify that relay trip times align with programmed characteristic curves. Always test the mechanical trip signal path to the circuit breaker.
-
Maintenance: The draw-out design allows for easy maintenance without disconnecting primary wiring. Regularly inspect the front panel display and clear any fault logs to maintain accurate event history.
💡 Product Operation Overview
The REJ521 operates by continuously sampling current and voltage inputs at high speeds. When a measured value exceeds a pre-defined threshold, the internal processor applies the selected inverse or definite time-delay curves to determine if a trip command is necessary. Beyond protection, it acts as a digital meter, providing operators with real-time data on load current, phase voltages, and power factor.
❓ Q&A: Frequently Asked Questions
Q: Can the REJ521 be used for motor protection?
A: While primarily a feeder protection relay, the REJ521 possesses basic overcurrent features that can support simple motor applications, but dedicated motor protection relays (like the REM series) are recommended for complex thermal modeling of motors.
Q: What should I do if the relay displays a “Self-Check” error?
A: A self-check error indicates that the internal diagnostics have detected a hardware inconsistency or RAM/ROM failure. Ensure the auxiliary power supply is stable; if the error persists, the unit may require factory calibration or hardware replacement.
Q: How do I extract event records for fault analysis?
A: Event records can be downloaded via the communication port (Modbus/SPA) using ABB software, or retrieved directly from the front-panel menu, which stores the last several fault occurrences including time stamps and magnitude.
