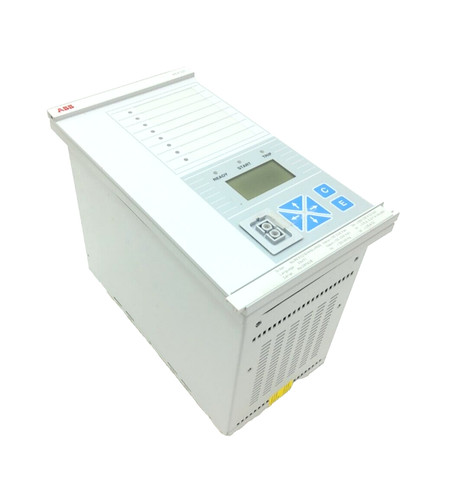

The ABB REX521GHHGLH50G is a sophisticated feeder protection and control relay belonging to the REX 521 series. It is specifically engineered for the protection, control, measurement, and supervision of medium-voltage networks and industrial power systems. This unit provides comprehensive protection against overcurrent, earth faults, and various voltage disturbances, ensuring high reliability and operational safety for electrical distribution.
Product Specifications
-
Product Series: REX 521 Protection and Control Relay
-
Dimensions: Approximately 160 mm x 150 mm x 215 mm
-
Weight: Approximately 3.5 kg
-
Country of Origin: Finland (ABB Oy)
-
Power Supply: Wide range auxiliary voltage support (typically 48-240 V AC/DC)
-
Digital Inputs: Multiple configurable binary inputs for status monitoring
-
Output Contacts: High-speed tripping and signaling relays
-
Communication Protocols: Modbus, IEC 60870-5-103, or SPA bus connectivity
-
Display Type: Integrated HMI with LCD screen for real-time data and alarms
Application Fields
This relay is versatile and widely utilized in sectors requiring precise power management. Key applications include utility distribution substations, large-scale manufacturing plants, chemical processing facilities, and renewable energy integration sites. It is particularly effective for protecting radial feeders, busbar systems, and large motors in high-demand environments.
Product Instructions
To ensure optimal performance, the REX521GHHGLH50G should be mounted in a standard panel cutout protected from excessive vibration and moisture. Wiring must follow the specific terminal diagram provided in the technical manual, ensuring all grounding connections are secure. Configuration and parameter settings are performed via the front-panel HMI or through specialized software interfaces. Routine maintenance involves checking terminal tightness and verifying relay operations through periodic secondary injection testing.
FAQ: Common Questions and Answers
Q: Can the REX521GHHGLH50G handle both directional and non-directional protection? A: Yes, depending on the software configuration and sensor inputs, it can be set for various overcurrent and earth-fault protection modes.
Q: What should I do if the “IRF” (Internal Relay Fault) LED is illuminated? A: This indicates a self-supervision failure. You should check the power supply stability and internal hardware status; if the error persists, the unit may require professional servicing.
Q: Is it possible to integrate this relay into a SCADA system? A: Absolutely. It supports several industry-standard communication protocols, allowing for seamless integration into centralized monitoring and control systems.
