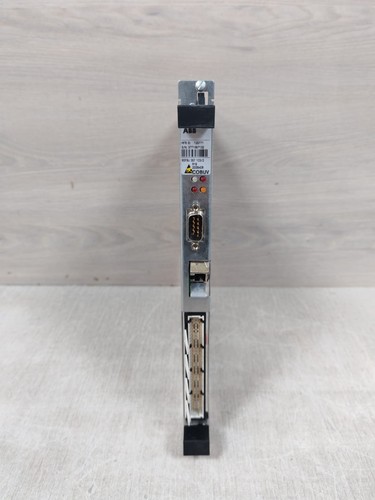

ABB ROFBU 367 103/2 R1B 2006W08 COBUV Interface Card

The ABB ROFBU 367 (103/2 R1B) is a specialized COBUV Interface Card engineered for the robust requirements of high-voltage transmission and switchgear control environments. As a critical interface card, it acts as the primary communication bridge between the main control processor and the peripheral switchgear components. By ensuring reliable, low-latency signal exchange, the ROFBU 367 maintains the synchronization and protective integrity required for stable high-voltage substation operations.

⚙️ Technical Specifications

• Part Number: ROFBU 367 103/2 R1B

• Date Code: 2006W08 (Manufactured in the 8th week of 2006)

• Function: COBUV Interface Card

• System Integration: Compatible with ABB high-voltage control platforms and relay terminals

• Communication Type: Proprietary COBUV internal bus protocol

• Design: Robust PCB construction resistant to high electromagnetic interference (EMI)

• Dimensions: Standard modular plug-in board format

• Weight: Approximately 0.8 – 1.2 lbs

• Country of Origin: Sweden / Germany

🌐 Application Areas

The ROFBU 367 is an essential component in substation automation and grid management:

• ⚡ Switchgear Control: Managing operational status of circuit breakers and disconnectors.

• 🛡️ Signal Conditioning: Converting analog/field signals into digital data for precise control processing.

• 🏭 Substation Automation: Facilitating inter-module communication within the main control rack.

• 🔄 Protection Integration: Providing the necessary hardware interface between local protection relay logic and field-side monitoring devices.

📖 Operating Instructions

Installation of this interface card should be performed by qualified electrical engineers:

1. ESD Safety: Always use a grounded anti-static wrist strap. The micro-components on this board are highly susceptible to electrostatic discharge.

2. Installation: Ensure the control rack is fully de-energized. Slide the ROFBU 367 into the designated rack slot, ensuring the backplane connectors are correctly aligned. Press firmly until the mechanical locking tabs engage.

3. Firmware Compatibility: Verify that the “R1B” revision is supported by your system’s current firmware. Update main controller software if necessary before finalizing the installation.

4. Wiring/Connections: If ribbon cables or external connectors are involved, ensure they are seated correctly to avoid pin misalignment, which can lead to intermittent communication timeouts.

5. Initialization: Upon power-up, the controller will auto-detect the module. Consult the station management software diagnostic logs to ensure the board status is “Online” and reporting zero errors.

6.

❓ Frequently Asked Questions

What is a “COBUV” interface? COBUV is a proprietary ABB signal bus architecture designed to maintain high-speed, noise-immune communication between control modules in high-voltage environments. It is specifically hardened to operate reliably despite the extreme EMI typical of substation switchyards.

Can I replace the ROFBU 367 while the station is energized? It is strongly recommended to isolate the rack or follow specific “Hot-Swap” procedures outlined in your site’s maintenance manual. Removing this card while the system is “live” without proper procedures can trigger a protective trip of the associated switchgear.

What does “2006W08” signify? This is the manufacturing date code. “2006” represents the year, and “W08” refers to the 8th week of that year. This is useful for tracking the age of the hardware and planning for potential component aging or scheduled lifecycle replacements.

How do I test the health of this card? The most effective method is to monitor the diagnostic status flags provided by the main controller’s software interface. If the card fails to initialize or experiences intermittent signal drops during operation, it is usually a sign that the card or the backplane connector requires physical inspection.
