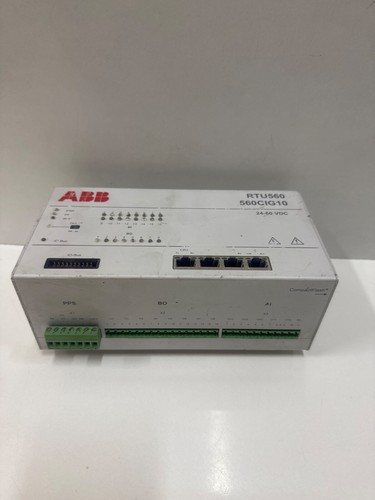

The ABB 560CIG10 (part number 1KGT021600R0001) is a high-performance integrated communication and CPU module designed for the RTU560 series Remote Terminal Units. This module serves as the primary processing engine and communication hub, coordinating data exchange between I/O modules and the central SCADA system. The 560CIG10 is engineered for high-availability grid automation, offering multiple communication ports and support for a vast array of telemetry protocols, making it a cornerstone for smart grid and substation modernization.
Technical Specifications
-
Model Number: 560CIG10
-
Part Number: 1KGT021600R0001
-
Manufacturer: ABB (Hitachi Energy)
-
System Series: RTU560
-
Processor: 32-bit high-speed industrial microprocessor
-
Memory: 64MB RAM / 128MB Flash
-
Communication Interfaces: * 2x Ethernet ports (10/100 Mbps)
-
2x Serial ports (RS-232 / RS-485 configurable)
-
-
Protocols: IEC 60870-5-101/104, DNP3, Modbus TCP/RTU, IEC 61850
-
Dimensions: 160mm x 100mm (Standard 3U Eurocard form factor)
-
Weight: 0.28 kg
-
Country of Origin: Germany
Applications
The 560CIG10 is predominantly used in power distribution and transmission substations. It excels in applications requiring the integration of various Intelligent Electronic Devices (IEDs) into a unified SCADA network. It is frequently applied in renewable energy management (wind and solar farms), railway power supply systems, and water distribution networks where robust, long-distance telemetry is essential for operational safety and efficiency.
Operating Instructions
The module must be inserted into the CPU slot of an RTU560 subrack (e.g., 560SFR02). Before installation, check the jumper settings on the PCB to define the serial interface operating modes (RS-232 vs. RS-485). Ensure the subrack power is switched off before sliding the module into the guide rails. Once seated, use the ABB RTUtil560 configuration software to define the IP addresses, communication parameters, and internal data points. It is highly recommended to perform a firmware synchronization to ensure the 560CIG10 is running the same version as the rest of the RTU system.
Frequently Asked Questions
Q: Does the 560CIG10 support IEC 61850? A: Yes, this module is fully capable of acting as an IEC 61850 Client or Server, allowing it to communicate directly with modern substation protection relays and IEDs.
Q: What is the purpose of the “Integrated” nature of this card? A: The “CIG” designation indicates it combines both the CPU (Central Processing Unit) and the communication interfaces on a single board, which saves space in the subrack and simplifies the internal bus architecture.
Q: Can this module be used for redundant CPU configurations? A: Yes, the RTU560 architecture allows for two 560CIG10 modules to be used in a redundant pair. If the primary module fails, the secondary module takes over communication and logic execution to prevent data loss.
