⚙️ Technical Specifications
| Feature | Specification |

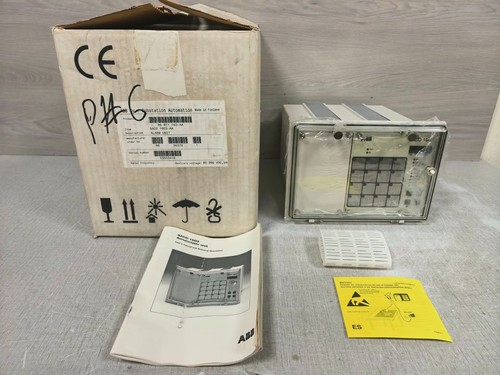

| Model | SACO 16D3-AA |
| Part Number | RS 811 163-AA |
| Revision | REV.R |
| Device Type | Digital Annunciator Unit |
| Application | Alarm Annunciation & Event Monitoring |
| Input Channels | 16 Channels |
| Operating Voltage | 110/220 V DC (Field Dependent) |
| Mounting Style | Panel Flush Mounting |
The SACO 16D3-AA is a robust, microprocessor-based digital annunciator designed for high-reliability alarm monitoring in power distribution and industrial control environments. This unit provides localized visual indication and alarm signaling for 16 binary inputs, featuring advanced diagnostic self-monitoring and flexible input signal programming to suit diverse process requirements.
📰 Product News & Industry Context
The ABB SACO series remains a staple in legacy power plant and substation automation. While newer communication-based HMI systems have become common, the SACO 16D3-AA continues to be widely utilized in “hardwired” critical alarm systems due to its high immunity to electrical interference and its ability to provide immediate, clear visual status updates without the dependency on network-based visualization software.
📖 Operating Instructions
-
Mounting: Insert the unit into the pre-cut panel opening and secure it using the supplied mounting brackets. Ensure a tight seal to maintain the front panel ingress protection.
-
Input Wiring: Connect the field alarm contacts to the terminal blocks at the rear of the unit. Ensure the input voltage level matches the unit’s rated specification to prevent damage.
-
Programming: Use the front-mounted DIP switches or configuration buttons (depending on specific sub-version) to set alarm sequences (e.g., ISA sequences) and input contact types (NO/NC).
-
Testing: Use the “Test” button on the front panel to verify the operational integrity of all LEDs and the internal acoustic alarm buzzer.
🛠 Product Operation Overview
The unit continuously scans the status of the 16 connected input channels. When an input state changes to an alarm condition, the associated LED flashes, and the internal buzzer triggers. The operator acknowledges the alarm via the front “Acknowledge” button, which transitions the LED from flashing to a steady state (if the condition persists) or extinguishes it (if the condition has cleared), depending on the programmed alarm sequence.
❓ Frequently Asked Questions (Q&A)
Q: Can I change the alarm sequence after the unit is installed?
A: Yes, provided the specific hardware version supports field configuration via DIP switches. Please consult the product manual for the specific sequence logic mappings available for the SACO 16D3 series.
Q: What does it mean if all LEDs are flashing simultaneously?
A: This typically indicates a system fault or a triggered “Lamp Test” mode. If it occurs during normal operation, check the auxiliary power supply stability or contact internal diagnostics.
Q: Is the SACO 16D3-AA compatible with modern SCADA systems?
A: The unit itself is primarily a local annunciator. However, it typically features a “Group Alarm” contact output that can be wired into a PLC or SCADA system to transmit a summary alarm signal to a central control room.
