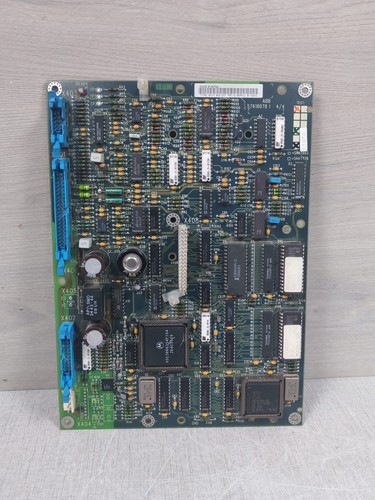

ABB SNAT 603 CNT REV.G 57618078 I 4/4 Control Board

  • Model: ABB SNAT 603 CNT

  • Revision: REV.G

  • Part Number: 57618078 I (4/4 Configuration)

  • Brand: ABB (Power Electronics Division)

  • Series: SNAT (Often utilized in legacy high-power DC drive systems and rectifiers)

  • Core Function: Serves as the primary control, firing, and logic interface for power conversion units; it processes incoming setpoints and provides gate-firing signals to the power thyristors.

  • Product Type: Control Board / Gate Firing Card

  • Key Specs: High-speed logic processing, opto-isolated firing circuits, feedback monitoring

  • Supply Status: ✅ Available (Refurbished/Tested Surplus)

  • Stock Quantity: < 3 units

  • Warranty: 12 months

  • Ship From: Europe / Global Logistics Hub Condition: Tested Surplus / Professional Refurbished

Key Technical Specifications

  • Logic Control: Manages the pulse-width or phase-angle firing logic for thyristor power stacks.

  • Feedback Monitoring: Inputs for current and voltage sensing to maintain stable regulation.

  • Connectivity: Multi-pin edge connectors for backplane integration and ribbon cables for signal I/O.

  • Safety Features: Integrated fault monitoring (overcurrent, phase loss detection, and watchdog timer).

  • Environment: Conformal coated PCB to withstand industrial environments (dust/humidity).

  • Mounting: Rack-mount PCB slide-in card.

Application Scenarios & Engineering Pain Points

The SNAT 603 CNT is critical to the operation of high-power DC motors and large-scale industrial rectifiers. The most frequent engineering challenge is “Gate Pulse Asymmetry.” Over time, the internal capacitors on the firing card can age, causing the timing of the pulses to shift slightly. This creates an imbalance in the current shared by the thyristors in the power stack, which can lead to localized heating and eventual “blowout” of the power semiconductors.

ABB SNAT 603 CNT REV.G 57618078 I 4/4 Control Board

Typical Application Scenarios:

  1. Heavy Manufacturing – DC Drive Control Provides the firing logic for rolling mills and large-scale conveyor systems.

  2. Utilities – Excitation Systems Used in the excitation control loops of large industrial generators.

  3. Mining/Refining – Rectifier Control Manages the conversion of AC to high-current DC for electrolytic processes.

Case Study: Restoring Drive Stability A customer reported that their drive was experiencing intermittent “Phase Loss” faults despite there being no actual power loss. We traced the issue to the SNAT 603 CNT (REV.G) board. The opto-couplers on the board had reached their MTBF (Mean Time Between Failure), resulting in weak gate signals. By swapping in a professionally refurbished board and performing a factory “current-balance” alignment, we resolved the fault and restored full current-sharing capability across the power stacks.

Troubleshooting Quick Reference

Don’t assume the firing board is the failure point until you have checked the input signals.

Failure Symptom Possible Cause Quick Check Method Recommended Action
Drive Won’t Start Logic Interlock Open Check “Drive Ready” signal Verify external safety/E-stop loops
Current Imbalance Firing Pulse Shift Oscilloscope check of gate pulses Recalibrate card or replace board
Phase Loss Fault Sync Signal Failure Verify AC synchronization inputs Check sync transformer wiring
Intermittent Jitter Capacitor Aging Monitor gate pulse stability Replace board with tested unit

Engineer’s Note: ❗ Crucial Advice: Always verify the Revision. Because this board is REV.G, it may have component or logic updates that are not backward compatible with earlier “A” or “B” revision boards. If your system was designed to use a REV.G board, do not substitute it with an older revision unless you have verified the firmware/hardware compatibility list from the ABB technical manual.
