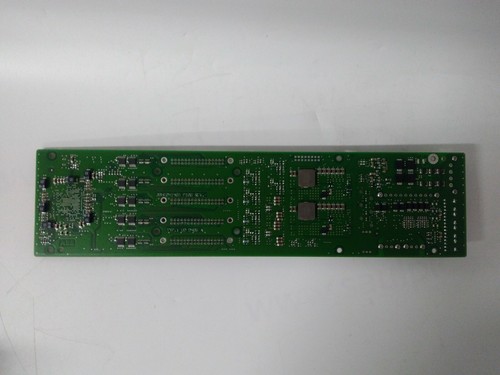

The ABB UDD406A (part number 3BHE041465P201) is a specialized electronic module utilized in ABB’s high-power converter systems and excitation controllers, such as the UNITROL 6000 series. This module functions as a sophisticated interface and signal processing unit, bridging the gap between high-level control logic and power-stage gate firing or feedback monitoring. It is designed for mission-critical applications where precise timing and extreme reliability are required to maintain grid stability and protect high-value power assets.
Product Specifications
Product Name: Control and Interface Module Model Number: UDD406A Part ID: 3BHE041465P201 Application: UNITROL 6000 / MEGATROL Power Electronics Interface Logic: High-speed FPGA-based signal processing Connectivity: Proprietary internal bus and fiber optic communication support Operating Environment: -10°C to +70°C (Industrial Grade) Dimensions: 233 mm x 160 mm x 20 mm Weight: 0.62 kg Country of Origin: Switzerland
Application Areas
The UDD406A is typically found in the control heart of large-scale power infrastructure:
-
Excitation Control: Serving as a feedback and gate-driver interface for synchronous generator excitation.
-
Static Frequency Converters (SFC): Managing the logic synchronization for starting large gas turbines in power plants.
-
Pumping Stations: Employed in high-power drive systems for large-scale water or oil transport.
-
Grid Interconnects: Part of the control architecture for Static Var Compensators (SVC) used in power quality management.
Usage Instructions
To ensure the long-term reliability of the UDD406A:
-
Installation: Ensure the control subrack is powered off before module insertion. Align the module with the guide rails and press firmly to seat the DIN connector into the backplane.
-
ESD Protocol: This board utilizes high-density integrated circuits that are extremely sensitive to static electricity. Always handle the board by the front panel and use a grounded ESD wrist strap.
-
Fiber Optic Care: If the UDD406A uses fiber optic links for signal isolation, ensure the connectors are free of dust. Use specialized optical cleaning tools if necessary to prevent signal attenuation.
-
Firmware Matching: Replacement modules should have the same revision (P201). When replacing, verify with the system HMI that the firmware version is consistent across all redundant control channels.
Q&A – Frequently Asked Questions
What is the significance of the P201 revision? The P201 revision indicates a specific hardware build or component configuration. It is critical to match this exactly with the module being replaced to ensure the system’s timing constants and logic levels remain within specification.
Can the UDD406A be used in general industrial PLC racks? No, the UDD406A is a specialized component for high-power electronics and is not compatible with standard AC 800M or AC 500 PLC racks.
What are the symptoms of a failing UDD406A module? Common symptoms include “Gate Drive Fault” alarms, loss of synchronization with the grid, or intermittent communication errors on the internal system bus.
Is this module repairable? Due to the use of multi-layer PCBs and specialized surface-mount technology, ABB recommends replacing the module with a factory-tested unit rather than attempting component-level field repairs.
