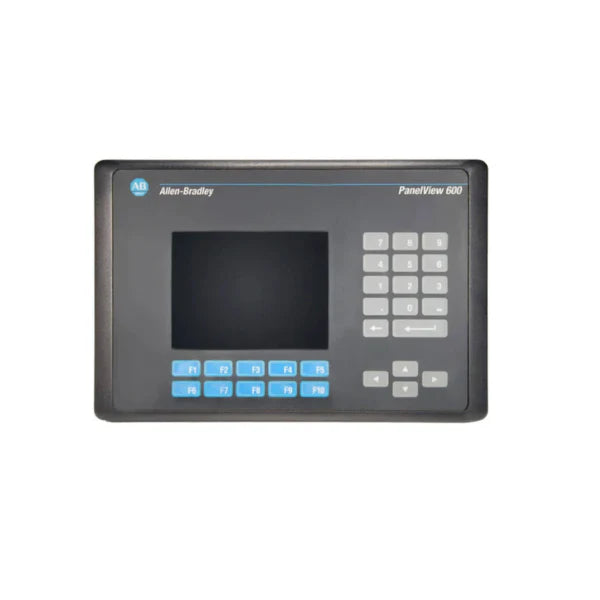

Allen-Bradley 2711-K6C20 PanelView™ 600 Color Keypad Terminal with Ethernet & RS-232 (AC Power)
📊 Product Overview
The Allen-Bradley 2711-K6C20 is a rugged, color-keypad HMI (Human-Machine Interface) terminal designed for industrial automation applications. Part of the PanelView™ 600 series, this device combines a 5.7-inch color display with a tactile keypad, enabling operators to monitor and control machinery with precision. Its built-in Ethernet and RS-232 communication ports support seamless integration with PLCs, drives, and other equipment, while AC power input ensures compatibility with standard industrial electrical systems.
Key Features
✅ 5.7-Inch Color Display
- Resolution: 320 x 234 pixels
- Backlit TFT LCD for clear visibility in low-light environments.
✅ Tactile Keypad Interface
- 20 function keys with customizable labels for intuitive operation.
- Durable design rated for millions of actuations.
✅ Dual Communication Ports
- Ethernet (10/100 Mbps): Enables high-speed data exchange with PLCs (e.g., Allen-Bradley ControlLogix, CompactLogix) and SCADA systems.
- RS-232 (Serial): Supports legacy device connectivity (e.g., printers, barcode scanners).
✅ AC Power Input
- Voltage Range: 100–240 VAC, 50/60 Hz.
- Reduces reliance on external power converters.
✅ IP65 Front-Panel Rating
- Resists dust and water jets, making it suitable for harsh industrial environments.
✅ FactoryTalk® View ME Software Compatibility
- Applications are developed using FactoryTalk View Machine Edition (ME), allowing for centralized project management and scalability.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 2711-K6C20 |
| Display Type | 5.7″ Color TFT LCD |
| Resolution | 320 x 234 pixels |
| Input Type | Keypad (20 function keys) |
| Communication | Ethernet (10/100 Mbps), RS-232 (Serial) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temp. | 0–55°C (32–131°F) |
| Storage Temp. | -20–70°C (-4–158°F) |
| Humidity | 5–95% non-condensing |
| Enclosure Rating | IP65 (front panel) |
| Software | FactoryTalk View ME |
| Memory | 1 MB application runtime memory |
| Weight | 1.8 kg (4 lbs) |
Datasheet-Style Configuration Table
| Component | Option | Description |
|---|---|---|
| Display | 5.7″ Color TFT | Anti-glare coating for improved readability. |
| Keypad | 20-Key Function Layout | Programmable keys with laser-etched labels for long-term durability. |
| Ethernet | 10/100 Mbps Auto-Negotiation | Supports TCP/IP, Modbus TCP, and EtherNet/IP protocols. |
| RS-232 | Full-Duplex Serial Communication | Compatible with DF1, DH-485, and custom protocols. |
| Mounting | Panel or VESA Mount | Flexible installation options for control cabinets or desks. |
Operational Tips
🔧 Firmware Updates
- Use Rockwell Automation’s ControlFLASH software to update firmware via Ethernet or USB (if equipped with a USB port in later revisions).
🔧 Calibration
- Recalibrate the touchscreen (if applicable in hybrid keypad/touch models) through FactoryTalk View ME tools to maintain accuracy.
🔧 Troubleshooting
- No Display: Verify AC power connection and check input voltage within 100–240 VAC range.
- Communication Errors: Ensure Ethernet/RS-232 cables are securely connected and IP addresses are correctly configured.
Product Warranty & Support
🛡️ Standard Warranty
- 1-year limited warranty against defects in materials and workmanship.
🛡️ Extended Support Options
- Contact Rockwell Automation or authorized distributors for service plans, including advanced replacements and on-site repairs.
📧 Contact Us
- Email: mailto:geabbamy@gmail.com
- WhatsApp: +86 15359029662
Explore Similar Products
For alternative configurations or larger displays, consider these models:
| Model | Description |
|---|---|
| 2711P-T6C20D8 | PanelView Plus 600 with Touchscreen, Ethernet, and RS-232. |
| 2711-K7C20A8 | PanelView 600 Keypad Terminal with DH+ and RS-232 Communication. |
| 2711-T10C4D8 | PanelView 1000 Touchscreen Terminal with Ethernet, RS-232, and AC Power. |
Final Notes
The 2711-K6C20 is ideal for applications requiring a balance of visual feedback and tactile input, such as packaging lines, water treatment plants, and material handling systems. Its rugged design and versatile communication options ensure reliable performance in demanding industrial settings. For pricing or availability, reach out to our team via email or WhatsApp! 🚀
