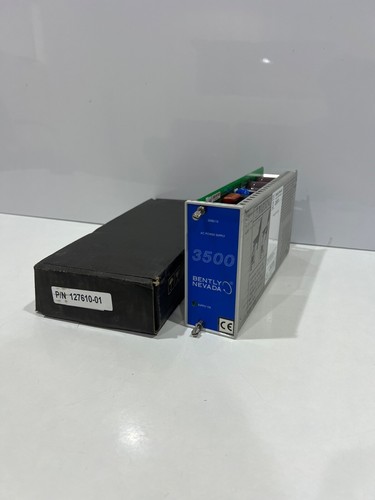

The Bently Nevada 127610-01 AA is a high-performance power supply module for the 3500 Series Machinery Protection System. Specifically designated as part of the 3500/15 power system, this module is designed to provide regulated and reliable power to all monitor modules within the rack. The “AA” revision indicates a specific configuration designed for high-voltage applications, ensuring that critical vibration and position monitoring data remains uninterrupted even during fluctuating power conditions.
Technical Specifications (Product Datasheet) Model Number: 127610-01 AA Series: 3500/15 Machinery Protection System Input Voltage: 175 to 250 Vac (High Voltage AC) Input Frequency: 47 to 63 Hz Output Voltage: Regulated DC for rack backplane Efficiency: >85% at full load Isolation: 2500 Vdc input to output Operating Temperature: -30°C to +65°C Storage Temperature: -40°C to +85°C Humidity: 95% non-condensing Length: 241 mm Width: 24.4 mm Height: 120 mm Weight: 0.82 kg Country of Origin: USA
Applications The 127610-01 AA power module is the backbone of the 3500 rack used in heavy industrial sectors such as oil and gas, power generation, and chemical processing. It powers the monitoring of large rotating machinery, including steam turbines, centrifugal compressors, and large electric motors. Its robust design is essential for systems where machinery protection is a priority, providing the stable energy source required for transducers and proximity probes.
Operating Instructions Installation should be performed by sliding the module into the dedicated power supply slots on the left side of the 3500 rack. Ensure the rack chassis is properly grounded before applying AC power. The module supports redundant configurations; when two 127610-01 AA modules are installed, the rack will automatically balance the load between them. If one module fails, the other will assume the full load without interrupting system operation. Before removal, ensure the power switch on the front panel is in the “OFF” position and the green “OK” LED has extinguished.
Q&A – Frequently Asked Questions Question: Can I mix this high-voltage AC module with a low-voltage DC module in the same rack? Answer: Yes, the 3500/15 system is designed to allow redundant power supplies with different input voltages (e.g., one AC and one DC) to ensure the system remains powered even if one source fails.
Question: What does the “AA” suffix represent in this part number? Answer: The suffix denotes the specific hardware revision and country-specific certifications. “AA” typically refers to the high-voltage AC version with standard factory approvals.
Question: What should I check if the “Supply” LED is red? Answer: A red LED usually indicates an internal fault or an input voltage that is outside the specified range (175-250 Vac). Verify the source voltage and check the rack for any short circuits in the monitor modules.
Learn More & Purchasing For availability and technical support regarding the BENTLY NEVADA 127610-01 and other 3500 series vibration monitoring components, please visit our online catalog.
