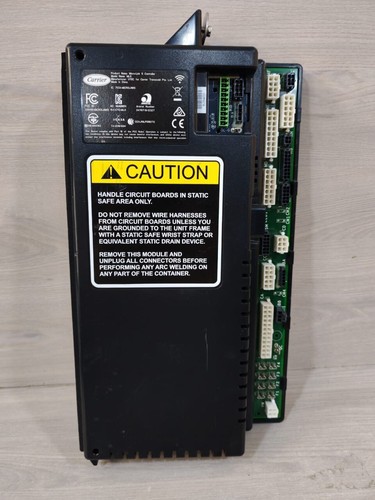

Carrier Transicold ML5 Micro-Link 5 Controller 12-00812-00

The Carrier Transicold Micro-Link 5 (ML5), specifically part number 12-00812-00, is a state-of-the-art Controller engineered specifically for the precision requirements of refrigerated transport. As the latest evolution in the Micro-Link series, this unit manages the complex thermal and operational demands of reefer containers, ensuring that temperature-sensitive cargo—such as pharmaceuticals, perishable produce, and frozen goods—remains within strictly defined environmental parameters during transit.

📋 Product Specifications

• Model Number: 12-00812-00 (ML5)

• Product Series: Micro-Link 5 (Reefer Controller)

• Display Technology: High-contrast, backlit graphical LCD

• Dimensions: Standard reefer controller housing (Approx. 280mm x 180mm x 100mm)

• Weight: 1.5 kg

• Country of Origin: United States / Global Manufacturing

• Operating Temperature: -30°C to +70°C

• Communication Interface: RS485 (DataLink), USB for data extraction, and wireless/Bluetooth capabilities for localized diagnostics

🏢 Application Areas

This controller is deployed globally in intermodal refrigerated containers (reefers). It is essential for maritime shipping lines, logistics companies, and pharmaceutical cold-chain managers. The ML5 is responsible for managing the refrigeration compressor, evaporator fans, defrost cycles, and electronic expansion valves, ensuring consistent cargo protection across sea and land transport environments.

🛠️ Product Usage Instructions

1. System Power: Ensure the reefer container is connected to a stable power source (typically 380V/440V AC). The ML5 initiates an automatic self-test upon power-up.

2. Interface Navigation: Use the keypad to navigate the menu structure. The screen displays real-time data including supply/return air temperatures, compressor status, and active alarm codes.

3. Data Extraction: To retrieve temperature logs and trip data, insert a USB drive into the integrated port. The controller automatically uploads the trip file for cargo compliance reporting.

4. Alarms: If a red alarm light appears, navigate to the “Alarm List” menu. The ML5 provides descriptive fault codes (e.g., “AL50 – Compressor High Pressure”) to assist in rapid field diagnosis.

5. Configuration: Advanced parameters, such as cargo setpoint or economy mode settings, should be adjusted only by certified reefer technicians using the controller’s Service Mode.

❓ Q&A

What are the key improvements in the Micro-Link 5 over older models? The ML5 features a faster processor, enhanced data logging memory, and improved wireless/USB connectivity. These upgrades significantly reduce the time required for data retrieval and allow for more sophisticated diagnostic algorithms that predict component failure before it occurs. How does the controller manage energy efficiency? The ML5 utilizes proprietary software to optimize compressor speed and electronic expansion valve (EEV) positioning based on real-time load requirements, significantly reducing power consumption compared to fixed-speed legacy systems. Can I retrofit an ML5 into an older container? While the ML5 is backward-compatible with many Carrier reefer structures, upgrading requires specific software configuration and potentially new cabling/sensors. This should only be handled by an authorized service center. What should I do if the display is blank? First, verify the input power to the container. If power is present but the display remains blank, check the controller’s internal fuse/breaker or the power cable harness to the unit.
