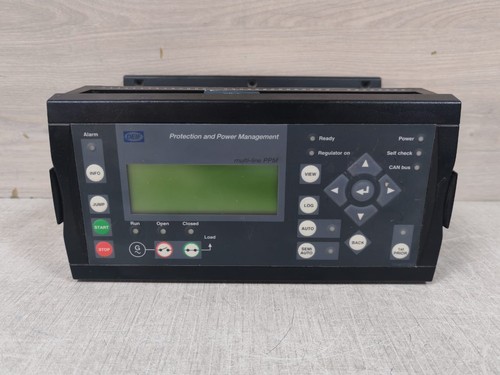

The DEIF PPM-3 SC (Protection and Power Management) is a highly sophisticated, microprocessor-based controller designed for the comprehensive management of power generation systems. It is primarily used in maritime and industrial applications to manage generator sets, ensuring safe synchronization, load sharing, and engine protection. The “250VAC” rating typically refers to the maximum voltage capacity of the unit’s relay outputs or auxiliary input range, ensuring it can handle standard control-voltage environments found in power generation switchboards.
📋 Product Specifications
-
Model: PPM-3 SC (Protection and Power Management)
-
Function: Generator control, protection, synchronization, and power management
-
Voltage Rating: 250VAC (Relay/Control interface capacity)
-
Mounting: Panel-mounted (standard industrial housing)
-
Communications: Integrated RS485 (Modbus), CAN bus (for engine communication)
-
Operating Temperature: -25°C to +70°C
-
Housing: IP54 (Front panel)
🏢 Application Areas
The PPM-3 SC is engineered for critical power environments where reliability is paramount. Its primary applications include:
-
Marine Power Systems: Synchronizing and managing auxiliary generators on ships.
-
Industrial Backup Power: Managing emergency generator sets (gensets) in factories, hospitals, and data centers.
-
Peak Shaving: Automatically adjusting generator output to manage grid demand.
-
Power Plant Management: Providing complex protection functions (ANSI standards) for medium-to-low voltage distribution.
🛠️ Product Usage Instructions
-
Safety First: Ensure all power is isolated before wiring. Only certified technicians should perform programming or wiring changes, as the unit controls high-voltage switchgear.
-
Installation: Secure the unit in a panel cutout using the included mounting brackets. Maintain sufficient airflow around the heat-generating components behind the panel.
-
Connectivity: Connect current transformers (CTs) for measurement and voltage transformers (VTs) for synchronization. Ensure the auxiliary power supply (usually 12/24VDC) is properly fused.
-
Configuration: Use the DEIF Utility Software (PC interface) to download the specific application logic. The software allows for precise setting of protection curves (e.g., overcurrent, reverse power, frequency) and synchronization parameters.
-
Testing: Before putting the system into service, conduct a full secondary injection test to verify that the unit trips correctly when fault conditions are simulated.
❓ Q&A
What does “SC” stand for in the model name? The “SC” typically denotes a “Standard Controller” or specific variant optimized for synchronization and basic protection, differentiating it from more complex Multi-Line or Advanced Power Management units. How does the PPM-3 handle load sharing? It uses either digital CAN bus communication (for compatible engines/drives) or analog load-sharing lines (0-10V / 4-20mA) to ensure generators share the active and reactive load proportionately. Can I replace a legacy DEIF unit with a PPM-3? The PPM-3 is designed to be a highly versatile replacement, but requires mapping the previous I/O to the new unit’s terminal layout. Always consult the migration guide provided by DEIF. What happens if the unit loses its configuration? If the internal memory is cleared, the unit will revert to a non-functional state (usually showing an error code). You must restore the .pce or application file saved during commissioning from your local backup.
