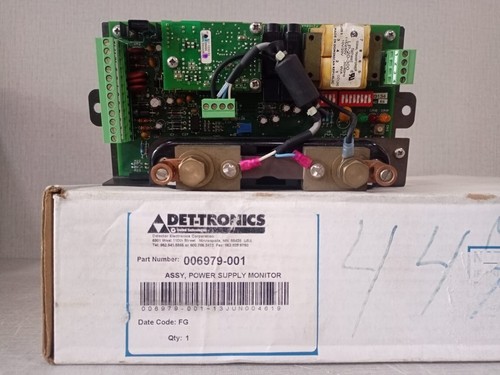

Det-Tronics EQ2100PSM | Eagle Quantum Power Supply Monitor

The Det-Tronics EQ2100PSM (P/N 006979-001) is a critical Power Supply Monitor (PSM) module designed for the Eagle Quantum (EQ) fire and gas detection system. This PSM module is engineered to provide continuous, high-precision monitoring of the DC power distribution within an industrial safety system. By ensuring the health and stability of the system’s power rails, it helps maintain the integrity of fire detection and suppression responses in hazardous environments.

⚙️ Technical Specifications

• Part Number: 006979-001 / EQ2100PSM

• Function: Power Supply Monitoring for Eagle Quantum Systems

• Monitoring Capability: Continuous supervision of DC voltage levels and power rail status

• System Integration: Plugs directly into the EQ safety controller backplane

• Compatibility: Fully compatible with Eagle Quantum Premier (EQP) systems

• Status Indicators: Front-panel LEDs for power status, health, and alarm conditions

• Dimensions: Standard EQ series modular card format

• Weight: Approximately 1.0 – 1.5 lbs

• Country of Origin: USA

🌐 Application Areas

The EQ2100PSM is an essential safety-critical component for:

• 🔥 Fire and Gas Detection: Ensuring that detectors and control modules remain energized at all times.

• 🏭 Hazardous Locations: Deployments in oil and gas refineries, chemical plants, and offshore platforms.

• 🛡️ Safety Instrumented Systems (SIS): Providing diagnostic feedback for power-related faults to the safety controller.

• 🔄 Redundant Power Rails: Monitoring multi-channel power distribution to prevent single-point failures.

📖 Operating Instructions

Installation must be performed by certified safety system technicians:

1. Safety First: Ensure that the Eagle Quantum controller is in a “Maintenance Mode” or that the safety logic has been bypassed before removing or installing modules.

2. Backplane Insertion: Slide the module into the designated slot on the EQ backplane. Ensure the pins are properly aligned with the connector block to avoid bending pins.

3. Firmware/Configuration: Once inserted, the EQ controller will automatically recognize the module. Use the Eagle Quantum Premier Software (EQPS) to configure the voltage thresholds for “Power Low” or “Power High” alarm triggers.

4. Wiring: No complex field wiring is usually required for the module itself, as it monitors the power distribution on the internal backplane. However, ensure the main system power supplies are correctly terminated to the controller’s power entry terminals.

5. Testing: After installation, verify the power monitoring status in the software and perform a simulated voltage test (using a variable power supply) to ensure the module correctly triggers system alarms.

6.

❓ Frequently Asked Questions

What happens if the PSM module fails? The EQ2100PSM is designed to provide diagnostic feedback. If the module fails, the safety controller will log a “Module Fault” or “Communication Loss” alarm. While the system may continue to run on other power rails, the loss of monitoring capability on the specific bus is a critical condition that requires immediate investigation.

How does this module differ from a standard power supply? This module does not convert AC to DC; rather, it monitors the existing DC bus. Its primary role is to detect brown-outs, over-voltage conditions, or noise on the power lines that could compromise the safety system’s reliability.

Is this module hot-swappable? In many EQP configurations, the modules are designed for hot-swapping. However, always refer to your site-specific safety procedures before pulling any module while the system is active to avoid unexpected diagnostic alarms or safety interlocks.

What is the significance of the 006979-001 part number? This specific P/N identifies the hardware version calibrated for Eagle Quantum systems. Always match this P/N exactly when sourcing replacements to ensure the monitoring logic matches your existing system firmware.
