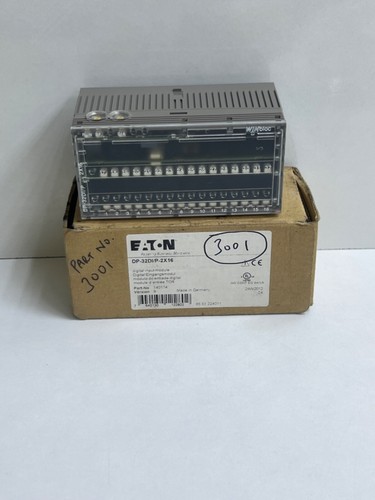

The Eaton DP-32DI/P-2X16 is a high-density Digital Input (DI) module designed for use with the Eaton distributed I/O systems and programmable logic controllers (PLCs). This module provides 32 discrete input channels, organized into two distinct groups of 16 (2×16), allowing for efficient connection of a wide array of field devices such as sensors, switches, and push buttons. The “P” designation typically indicates a PNP (Source) input configuration, where the module detects a signal when current flows into the input terminal from a positive voltage source.
Technical Specifications
-
Model Number: DP-32DI/P-2X16
-
Manufacturer: Eaton Corporation
-
Input Type: Digital / Discrete
-
Channel Count: 32 Channels (2 Groups of 16)
-
Input Logic: PNP (Sourcing)
-
Rated Voltage: 24 VDC
-
Input Current: Approx. 4.0 mA per channel
-
Isolation: Optocoupler isolation between field side and system bus
-
Connection Type: High-density 2×16 header or specialized terminal blocks
-
Dimensions: 11.5 cm x 4.5 cm x 10.0 cm
-
Weight: 0.32 kg
-
Country of Origin: USA / Germany
Applications
This high-density module is ideal for large-scale industrial automation projects where cabinet space is at a premium. It is widely used in packaging machinery, automotive assembly lines, and material handling systems. By consolidating 32 inputs into a single module, it reduces the physical footprint of the I/O rack while providing the necessary interface for complex monitoring tasks, such as tracking the status of numerous limit switches or proximity sensors across a production floor.
Operating Instructions
The DP-32DI/P-2X16 should be installed onto the compatible backplane or DIN-rail base unit of the Eaton I/O system. Before installation, ensure the system power is switched off. Due to the high-density nature of the 2×16 connector, it is recommended to use pre-fabricated cable harnesses or specialized transition modules to simplify field wiring. Ensure that the 24 VDC field power supply is correctly polarized; for PNP logic, the common side of the field devices must be connected to the system’s negative terminal. Once hardware is secured, configure the I/O mapping in the Eaton CoDeSys or SWD-Assist software to assign the 32 input bits to the appropriate controller addresses.
Frequently Asked Questions
Q: What does the “2X16” represent in the model name? A: This refers to the physical and logical arrangement of the inputs. The 32 channels are split into two groups of 16. This often allows for separate power feeds or common references for each group, providing better electrical isolation and troubleshooting capabilities.
Q: Can this module be used with NPN (Sinking) sensors? A: Standard “P” versions are designed for PNP logic. To use NPN sensors, you would typically need a signal inverter or a different module variant (often designated with an “N”). Connecting NPN sensors directly to a PNP module will result in the controller failing to recognize the “ON” state.
Q: How do I identify a channel failure? A: Most Eaton DP modules feature an LED status panel. A “Power” or “System” LED indicates the health of the module itself, while individual channel LEDs illuminate when a valid 24V signal is detected. If the LED is off despite the field device being triggered, check the field wiring and the specific group fuse.
