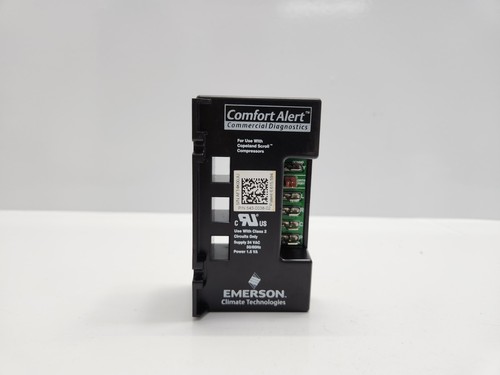

The Emerson 543-0038-02 (also identified as part number 600309) is an advanced diagnostic interface designed for commercial HVAC systems. This module significantly reduces troubleshooting time by monitoring the compressor’s electrical and mechanical performance in real-time. By utilizing a “plug-and-play” design, it communicates via LED codes to alert technicians of specific system faults before they lead to catastrophic compressor failure.
Technical Specifications and Datasheet
-
Product Model: 543-0038-02
-
Operating Voltage: 24V AC (Class 2 Transformer)
-
Compatibility: 3-Phase Commercial Compressors (Scroll and Reciprocating)
-
Power Consumption: Less than 5VA
-
Protection Rating: NEMA 1 (Indoor installation only)
-
Dimensions: 115mm x 85mm x 32mm
-
Weight: 0.22 kg
-
Origin: Mexico / USA
Application Fields
This module is a standard component in high-efficiency commercial environmental control systems, including:
-
Rooftop Units (RTUs): Monitoring large-scale heating and cooling units for commercial buildings.
-
Chillers: Integrated diagnostics for water-cooled and air-cooled chiller systems.
-
Commercial Split Systems: Protection for remote condensing units in retail and office spaces.
-
Refrigeration: Safeguarding compressors in cold storage and supermarket walk-in freezers.
User Instructions
-
Mounting: Install the module inside the electrical control box of the condensing unit, near the compressor contactor.
-
Wiring: Connect the three-phase power leads of the compressor through the integrated sensing holes on the back of the module. Ensure the 24V AC supply is connected to the ‘R’ and ‘C’ terminals.
-
Communication: Connect the ‘Y’ and ‘L’ terminals to the thermostat circuit and the alarm system if remote monitoring is required.
-
Observation: Upon startup, the module will perform a self-test. A solid green “Power” LED indicates normal operation.
-
Resetting: To clear a lockout or alert code, cycle the 24V power to the module after the underlying mechanical or electrical issue has been resolved.
Q&A: Common Troubleshooting
Q: What does a flashing yellow LED mean? A: A flashing yellow “Alert” LED indicates a specific fault code. Count the number of flashes and refer to the flash code chart on the module’s cover. Common codes include low pressure, high pressure, or short-cycling.
Q: Does the module shut down the compressor automatically? A: Yes, if a “Trip” condition is detected (Red LED), the module will break the contactor circuit to prevent further damage. It will attempt a reset based on pre-programmed timing unless a permanent lockout is triggered.
Q: Can this module be used on a single-phase compressor? A: No, the 543-0038-02 is specifically engineered for three-phase commercial systems. Using it on a single-phase system will result in inaccurate phase-loss and phase-imbalance alerts.
