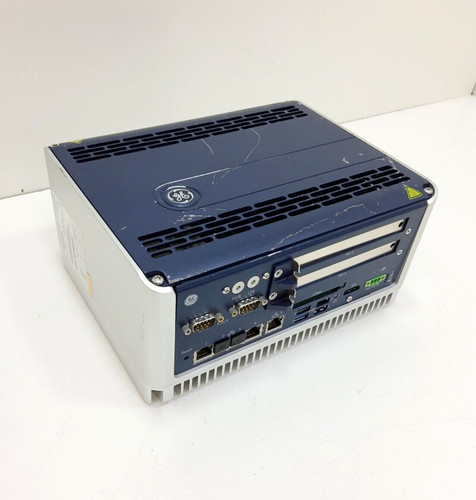

The GE 0555N1QEG132A-13 (Firmware Version 2.3) is a specialized industrial control module typically utilized within GE’s high-performance automation and power conversion systems. Part of the 0555 series, this module is engineered for high-speed logic execution and precise signal processing in demanding environments. Version 2.3 represents a specific lifecycle revision that incorporates improved timing stability and enhanced diagnostic capabilities compared to earlier hardware iterations.
Product Specifications (Datasheet)
-
Model: 0555N1QEG132A-13
-
Version: 2.3 (Firmware/Hardware revision)
-
Category: Industrial Logic / Control Module
-
Dimensions: 165 mm x 110 mm x 28 mm (H x D x W)
-
Weight: 0.42 kg
-
Supply Voltage: 24V DC (nominal)
-
Operating Temperature: -10°C to +60°C
-
Communication Interface: Integrated high-speed serial and parallel backplane connectivity
-
Processing Core: Multi-processor architecture for synchronized task management
-
Protection: Integrated EMI shielding and over-voltage surge protection
Key Application Fields
-
Power Generation: Coordinating excitation systems and turbine control parameters.
-
Grid Infrastructure: Managing high-voltage DC (HVDC) transmission station logic.
-
Industrial Drives: Acting as a core controller for large-scale variable frequency drives (VFDs) in steel or paper mills.
-
Renewable Energy: Synchronizing inverter phases in utility-scale solar or wind farm power conversion units.
-
Critical Infrastructure: Managing backup power sequencing for large-scale data centers or naval vessels.
Product Usage Instructions
-
Installation: Insert the module into the designated slot of the control rack or chassis. Ensure the gold-plated edge connectors are free from dust or debris before seating.
-
Versioning Check: Before deployment, verify that Version 2.3 is compatible with your existing system firmware. Incompatible versions can cause “Bus Fault” errors in synchronized multi-processor setups.
-
Grounding: Ensure the chassis is properly earthed. The 0555 series relies on a solid frame ground to mitigate electrical noise that could affect high-speed logic.
-
Configuration: Use the GE system-specific engineering tool (such as ControlST or ToolboxST) to map the module’s I/O and set local parameters.
-
Diagnostic Monitoring: Utilize the on-board status LEDs to verify initialization. A steady green “Run” LED indicates successful synchronization with the master controller.
Q&A: Frequently Asked Questions
Q: Can I replace a Version 2.1 module with this Version 2.3 unit? A: In most cases, Version 2.3 is backward compatible. However, you must verify the “Major Revision” settings in your software configuration to ensure the system recognizes the updated hardware features.
Q: What does the “-13” suffix indicate? A: This suffix typically denotes a specific hardware sub-configuration, such as specialized memory capacity, extended temperature testing, or a specific I/O mapping unique to that variant.
Q: How do I perform a firmware update on this module? A: Firmware for the 0555 series is usually flashed via the main controller’s maintenance port. It is highly recommended to perform updates only during scheduled maintenance windows.
Q: Is this module hot-swappable? A: While many GE industrial racks support hot-swapping, the 0555N1QEG132A-13 should only be removed under power if the system is configured for hardware redundancy to prevent a total system trip.
