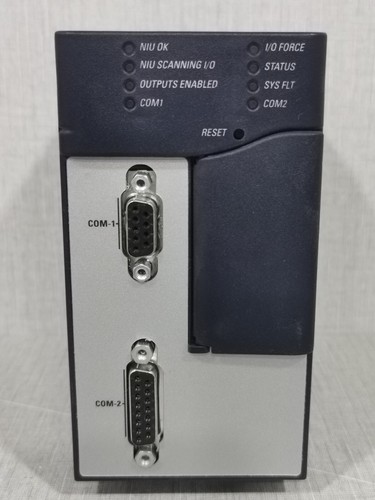

The GE Fanuc IC695NIU001CA-ABAA is a high-performance Ethernet Network Interface Unit (NIU) designed for the PACSystems RX3i platform. This module serves as a powerful bridge between the RX3i distributed I/O system and the main controller via high-speed Ethernet, facilitating seamless real-time data exchange and remote I/O management. Equipped with two serial ports for additional integration, it provides maximum flexibility for industrial automation setups.
📋 Product Specifications
-
Model Number: IC695NIU001CA-ABAA
-
Product Series: PACSystems RX3i
-
Function: Ethernet Network Interface Unit (NIU)
-
Ports: 1 x Ethernet (10/100 Mbps), 2 x RS-232/RS-485 Serial Ports
-
Dimensions: Standard RX3i module width (Approx. 130mm x 100mm x 70mm)
-
Weight: 0.40 kg
-
Country of Origin: United States
-
Operating Temperature: 0°C to +60°C
-
Power Supply: Supplied via the RX3i backplane (24V DC)
🏢 Application Areas
This NIU is extensively utilized in complex manufacturing processes, water and wastewater treatment, power distribution, and large-scale industrial assembly lines. By enabling distributed I/O configurations, it allows engineers to place I/O racks closer to the machinery they control, reducing wiring costs and signal interference while maintaining high-speed communication with the central PACSystems CPU. The dual serial ports are ideal for connecting legacy field devices, bar code scanners, or human-machine interfaces (HMIs) directly to the I/O node.
🛠️ Product Usage Instructions
-
Module Insertion: Ensure the RX3i rack power is off. Align the IC695NIU001CA-ABAA with the rack guides and push until the connector pins seat into the backplane. Secure the module using the top and bottom latching clips.
-
Ethernet Setup: Connect a shielded Cat5e or Cat6 Ethernet cable to the RJ45 port. Use a standard network switch to connect the NIU to the main CPU network segment.
-
Serial Configuration: Use the serial ports for secondary integration. Ensure proper impedance termination for RS-485 connections to prevent signal reflections.
-
Addressing: Configure the IP address and device network parameters using the GE Proficy Machine Edition software. Assign a unique node ID to the NIU so the CPU can identify it on the Ethernet network.
-
Validation: Monitor the “STATUS” and “LAN” LEDs. A solid green light on both indicates that the module has successfully established a link and is communicating with the host controller.
❓ Q&A
What is the advantage of the NIU architecture? The NIU allows the I/O rack to function as a remote node, offloading the physical I/O wiring from the main controller rack while keeping all I/O transparently accessible to the RX3i CPU as if they were local. What are the two serial ports for? These ports allow the NIU to act as a gateway for serial-based devices. You can use them for Modbus RTU communication, connecting serial printers, or integrating legacy PLCs into the modern Ethernet-based control network. Does the “ABAA” suffix matter? Yes, the suffix (ABAA) identifies the hardware revision and production run. When performing a direct replacement, matching these characters ensures complete compatibility with your existing program settings and I/O scan lists. Is this module field-upgradable? Firmware for the NIU is updated via the Ethernet port using the Proficy Machine Edition software. It is recommended to perform this only when the controller is in a safe stop state.
