📊 Technical Specifications
| Feature | Specification |
| Model | XDP-221-2 |
| Series | Thermal Conductivity Analyzer/Transmitter Display |
| Function | Remote/Local Process Data Visualization |
| Compatibility | GE Fanuc Thermal Conductivity Transmitter Series |
| Display Type | LED/LCD Numeric Process Readout |
| Input Signal | 4-20 mA or Proprietary Digital Bus |
| Mounting | Panel Mount / Enclosure Integrated |
| Environment | Industrial Process Monitoring |

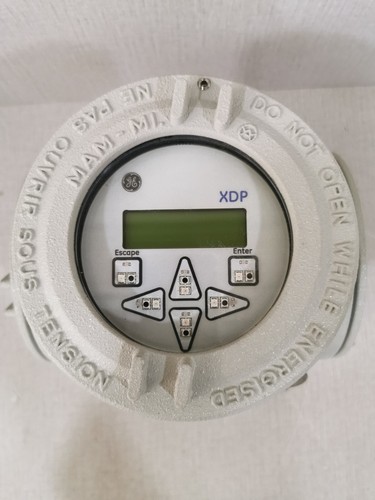

The XDP-221-2 serves as a specialized display interface for GE Fanuc thermal conductivity transmitters. It is engineered to provide precise, real-time visualization of gas concentration or thermal conductivity measurements in industrial process control loops. The unit acts as a local operator interface, ensuring that field personnel can monitor critical process parameters without needing to interface directly with the main Distributed Control System (DCS) or PLC cabinet.
📰 Product News & Industry Context
The GE Fanuc instrumentation line, particularly for gas analysis, remains essential in applications ranging from hydrogen cooling in power generators to chemical synthesis monitoring. As older measurement infrastructure is maintained, the XDP series continues to be supported as a rugged, reliable interface. Industry best practices currently emphasize the importance of verifying display accuracy against calibrated test gases to ensure that the process readings match the actual transmitter outputs.
⚙️ Operating Instructions & Usage
-
Integration: Connect the display module to the transmitter’s signal output port. Ensure the cable shielding is properly grounded at one end to prevent electromagnetic interference (EMI) from distorting the signal.
-
Calibration: The XDP-221-2 acts as a repeater; therefore, calibration should be performed at the transmitter level. The display is typically set to span automatically based on the transmitter’s programmed 4-20 mA range.
-
Maintenance: Keep the display faceplate clean from industrial dust and moisture. Periodically verify the brightness and segment integrity of the display to ensure readability in varying lighting conditions.
-
Diagnostics: If the display shows “OL” (Over Load) or “Err,” check the loop signal strength or the health of the primary transmitter sensor element.
💡 Product Operation Overview
The display module receives an electrical signal proportional to the thermal conductivity of the process gas. The internal processor of the XDP-221-2 translates this signal into human-readable units (e.g., % concentration or W/m·K).
The module operates as a “passive” monitor, meaning it does not alter the control signal sent to the PLC, allowing for safe installation and removal without interrupting the overall safety or control logic of the process loop.
❓ Q&A: Frequently Asked Questions
Q: Can I use the XDP-221-2 with a different manufacturer’s transmitter?
A: No, this unit is specifically calibrated for GE Fanuc/GE Sensing protocols and signal impedance levels. Using it with non-compatible transmitters may lead to incorrect readings or damage to the input circuitry.
Q: What should I do if the display is blank but the system is running?
A: Check for 24V DC auxiliary power (if applicable) and verify that the signal cable is properly connected. If the unit has power but no display, it likely indicates a failure of the internal backlight or the display driver board.
Q: How often does the display need to be checked against the transmitter?
A: While the display itself does not “drift,” the system calibration should be checked according to your facility’s safety schedule, typically every 6 to 12 months, to ensure that the signal path from sensor to display remains linear.
