GE/Panametrics XMTC-62-21 Thermal Conductivity Transmitter

  • Model: GE/Panametrics XMTC-62-21

  • Brand: Panametrics (a Baker Hughes business, formerly GE)

  • Series: XMTC Thermal Conductivity Transmitter

  • Core Function: Measures the concentration of a specific gas in a binary (or pseudo-binary) gas mixture by comparing the thermal conductivity of the process gas against a reference gas.

  • Product Type: Thermal Conductivity Gas Analyzer

  • Key Specs: Accurate binary gas analysis, remote mounting, 4–20 mA output, optional digital communication (RS-485/Modbus)

  • Supply Status: ✅ Available (Refurbished/Surplus/New)

  • Warranty: 12 months

  • Ship From: USA / Global Logistics Hub Condition: Original Factory New / Professional Refurbished

Key Technical Specifications

  • Measurement Principle: Thermal conductivity comparison (Wheatstone bridge circuit)

  • Binary Gas Examples: Hydrogen () in Nitrogen, Argon in Oxygen, in Air, etc.

  • Accuracy: Typically of full scale (application dependent)

  • Output: 4–20 mA (isolated), optional RS-485 Modbus

  • Ambient Temperature: to

  • Housing: Explosion-proof/Flameproof (ATEX/IECEx/Class I, Div 1 options available)

  • Calibration: Easy field calibration using front-panel magnetic wand or digital interface

Application Scenarios & Engineering Pain Points

The XMTC is a staple in chemical and power plants for monitoring gas purity. The most significant engineering challenge is “Reference Gas Stability.” The XMTC relies on a reference gas (often the background gas of the process). If the reference gas flow is contaminated, moisture-laden, or experiences pressure fluctuations, the analyzer will report “drift.” Maintenance teams often overlook the reference gas conditioning system, which leads to the false conclusion that the XMTC sensor has failed.

Typical Application Scenarios:

  1. Power Generation – Hydrogen Cooling Monitoring the purity of hydrogen used to cool large electrical generators.

  2. Chemical Industry – Product Quality Measuring the concentration of specific gases in synthesis processes where components have distinct thermal conductivities.

  3. Metal Processing – Heat Treating Analyzing atmosphere gases to ensure product quality and safe process control.

Case Study: Eliminating Drift in Hydrogen Purity Analysis A power plant noticed that their hydrogen purity reading was drifting by every 24 hours. They assumed the XMTC-62-21 sensor needed replacement. Our analysis revealed that the reference gas intake was picking up ambient humidity, which changed the conductivity of the reference gas. Installing a simple desiccant dryer on the reference gas inlet restored the accuracy to within , saving the plant the cost of an unnecessary sensor replacement.

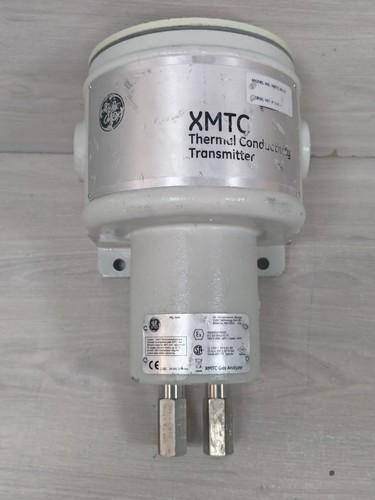

GE XMTC Thermal Condutivity Transmitter Gas Analyzer XMTC-62-21

Troubleshooting Quick Reference

Most XMTC issues stem from the sample system, not the electronics.

Failure Symptom Possible Cause Quick Check Method Recommended Action
Output Drift Reference gas contamination Check reference gas source/dryer Clean/Replace sample system filters
No Output Signal Loss of Power Measure 24 V DC at terminals Check instrument power supply
Erroneous Readings Flow Rate Fluctuation Check sample flow (must be stable) Install/Adjust flow regulator
“Fail” Status LED Sensor/Electronics Fault Check Modbus/HART diagnostic Perform internal self-test/Reset

Engineer’s Note: ❗ Crucial Advice: Always verify the thermal conductivity of your background gas. The XMTC cannot measure a gas if it has the same thermal conductivity as the background gas (e.g., measuring Argon in Nitrogen is very difficult). Furthermore, any change in gas pressure or temperature directly affects thermal conductivity; ensure your process temperature and pressure are stable or compensated for in the XMTC configuration.
