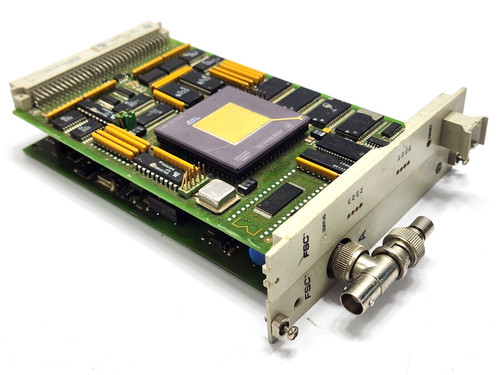

The HONEYWELL 10018/E/1 (also documented as 10018E1) is a high-reliability Ethernet communication interface module designed for the Fail Safe Control (FSC) system. This module serves as the primary gateway for integrating safety-related controllers into broader plant information networks and Distributed Control Systems (DCS). It is engineered to maintain data integrity and high-speed communication while meeting the stringent requirements of Safety Integrity Level (SIL) environments.
Technical Specifications and Datasheet
-
Product Model: 10018/E/1
-
System Compatibility: Honeywell Fail Safe Control (FSC) System
-
Protocol Support: TCP/IP, Ethernet/IP, and Proprietary FSC Safety Protocols
-
Communication Speed: 10/100 Mbps Auto-sensing
-
Hardware Revision: Series E (Enhanced)
-
Interface Ports: RJ45 Ethernet Port and Serial Configuration Port
-
Power Consumption: 5.5W Typical
-
Dimensions: 190mm x 40mm x 115mm
-
Weight: 0.48 kg
-
Origin: Netherlands / USA
Application Fields
The 10018/E/1 module is a critical component in safety-instrumented systems (SIS) across various heavy industries:
-
Emergency Shutdown (ESD): Providing real-time status monitoring of safety loops to the central control room.
-
Fire and Gas (F&G) Systems: Linking gas detectors and fire suppression controllers to plant-wide alarm networks.
-
Oil & Gas Processing: High-speed data exchange for offshore platforms and refinery safety management.
-
Power Generation: Ensuring reliable communication for turbine protection and boiler safety interlocks.
-
Chemical Plants: Integration of hazardous process monitoring with supervisory control layers.
User Instructions
-
Installation: Insert the module into the designated I/O slot of the FSC rack. Ensure the locking tabs are fully engaged to maintain a secure backplane connection.
-
Network Wiring: Connect a shielded Category 5e (or higher) Ethernet cable to the RJ45 port. For industrial environments with high EMI, the use of industrial-grade shielded cables is mandatory.
-
IP Configuration: Use the Honeywell FSC configuration software to assign a static IP address, subnet mask, and gateway. Ensure the module’s safety signature matches the controller’s configuration.
-
LED Status Check: Monitor the front panel LEDs. A green ‘LINK’ light indicates a successful physical connection, while a flashing ‘DATA’ light indicates active traffic.
-
Firmware Verification: Before commissioning, verify that the firmware version of the 10018/E/1 is compatible with the existing FSC system software version.
Q&A: Common Troubleshooting
Q: What should I do if the “FAULT” LED illuminates red? A: A red fault LED typically indicates an internal hardware failure or a configuration mismatch. Perform a module reset by reseating the unit in the rack. If the light persists, check the system diagnostic logs for a specific error code.
Q: Can I replace a 10018/1 (non-E version) with a 10018/E/1? A: In most cases, the /E/1 version is backward compatible as an enhanced replacement. However, you may need to update the hardware definition in your FSC project software to recognize the newer revision.
Q: Does this module support redundant network topologies? A: While a single module provides a point-to-point Ethernet link, the FSC system supports redundancy by using dual 10018/E/1 modules in separate racks or slots, managed by the safety controller’s redundancy logic.
