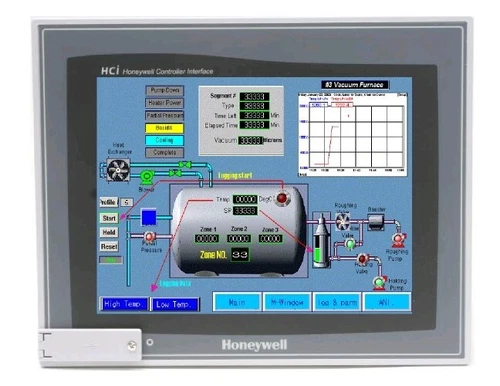

Honeywell HCIX10-TE-FD-NC 10.4″ Color Display Unit
Model: HCIX10-TE-FD-NC
Manufacturer: Honeywell
Category: Industrial HMI Display
Display Size: 10.4 inches
Resolution: 800×600 pixels
Power Supply: 24VDC
Interfaces: RS232/RS485
Application: Industrial Automation, Process Control, Operator Interface
Technical Datasheet Parameters
| 📌 Specification | 📋 Details |
|---|---|
| Display Size | 10.4 inches |
| Resolution | 800 x 600 pixels |
| Color Depth | 16.7 million colors |
| Brightness | 300 cd/m² |
| Power Supply | 24V DC ±10% |
| Current Consumption | 1.2A max |
| Interfaces | RS232, RS485 |
| Backlight Type | LED Backlit |
| Touch Type | Resistive Touch Screen |
| Mounting Type | Panel or Rack Mountable |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95% non-condensing |
| Dimensions | 283mm x 213mm x 60mm |
| Weight | 2.5 kg |
| Vibration Resistance | Meets industrial standards for vibration |
Key Features
- High-Quality Display
The 10.4-inch color display provides clear and vibrant visuals with 800×600 pixel resolution and a color depth of 16.7 million colors. It ensures excellent visibility even in dim environments. - Versatile Communication
Equipped with both RS232 and RS485 serial communication ports, this HMI unit supports a wide range of industrial devices, making it ideal for integration with diverse automation systems. - Touch Screen Capability
The resistive touch screen allows for precise interaction, even in tough environments. It’s highly responsive and durable, providing ease of use for operators. - Energy-Efficient LED Backlight
The display uses energy-efficient LED backlighting, providing long operational life and bright visibility while consuming less power. - Compact and Rugged Design
Built to withstand harsh industrial environments, the unit operates reliably in temperatures ranging from 0°C to 50°C, and its robust design ensures longevity even in vibration-prone locations. - Ease of Integration
The HCIX10-TE-FD-NC can be easily integrated into existing control systems due to its versatile communication interfaces and standard mounting options.
After-Sales Support
Our team provides full support for the Honeywell HCIX10-TE-FD-NC, including:
- Installation Assistance: Our technical team can assist with setup and ensure smooth integration with your control systems.
- Technical Support: We offer both remote and on-site support to troubleshoot any issues quickly and efficiently.
- Maintenance Services: Routine checks and repairs are available to maximize the lifespan and reliability of your units.
- Spare Parts: Get access to a wide range of replacement parts and modules to keep your systems running smoothly.
For more detailed support or to get in touch with our experts, visit:
👉 FY-Module Technical Services
👉 Explore Our Industrial Automation Modules
Similar Product Recommendations
| Model | Display Size | Resolution | Key Features | Link |
|---|---|---|---|---|
| HCIX12-TE-FD-NC | 12.1 inches | 1024×768 pixels | Enhanced brightness, larger screen area | View Details |
| HCIX08-TE-FD-NC | 8.4 inches | 640×480 pixels | Compact, space-saving design | View Details |
| HCIX15-TE-FD-NC | 15 inches | 1280×1024 pixels | High resolution, durable, advanced touchscreen | View Details |
Industry Insights
As industries become more reliant on automated systems, the need for intuitive and efficient human-machine interface (HMI) units is growing. The Honeywell HCIX10-TE-FD-NC offers a robust and clear interface, essential for real-time data monitoring and operator control. Its compact size, powerful communication capabilities, and reliable performance make it an excellent choice for a wide range of industrial applications, including manufacturing, process control, and energy management.
The ongoing trend towards automation and digitalization in industrial environments means that the demand for reliable HMI solutions will continue to rise. Systems like the HCIX10-TE-FD-NC are designed to support this shift, providing operators with the tools to easily interact with complex systems and ensuring smooth operational flow.
Moreover, as part of the broader Industry 4.0 movement, the HCIX10-TE-FD-NC is compatible with advanced technologies such as predictive maintenance and real-time data analysis, driving efficiency and reducing downtime across various industries.
If you need more information or assistance in selecting the right HMI for your system, feel free to contact us. Our team is dedicated to helping you implement the best solutions for your automation needs.
