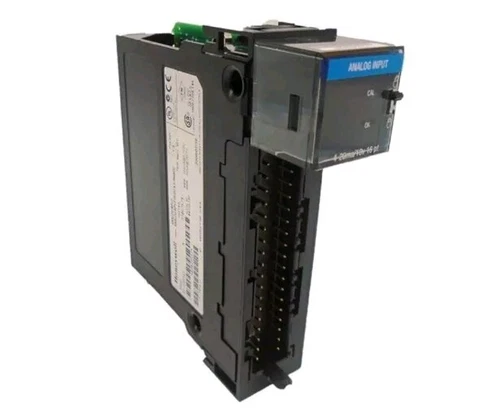

🌐 Honeywell TC-IAH161 High-Level Analog Input (10V & 4-20mA) – Product Overview
The Honeywell TC-IAH161 is a high-performance analog input module designed to interface with industrial control systems. Specifically, it accepts 10V and 4-20mA signals, allowing precise conversion of analog signals into digital data for processing within control systems. This module is ideal for applications where high accuracy and reliable analog-to-digital conversion are critical, such as in process automation, industrial monitoring, and data acquisition systems.
The TC-IAH161 is engineered for rugged environments, ensuring durability and consistent performance across a wide range of temperatures and industrial conditions. It supports a variety of industrial sensors and devices, including pressure sensors, temperature transducers, and flow meters. This makes it versatile and applicable in industries such as oil and gas, water treatment, and chemical processing.
📊 Technical Datasheet
| Specification | Description |
|---|---|
| 🆔 Model Number | TC-IAH161 |
| 🔌 Input Signal Types | 10V DC, 4-20mA |
| ⚡ Input Voltage Range | 0-10V DC / 4-20mA |
| 📏 Resolution | 16-bit Analog-to-Digital Conversion |
| 🌡 Operating Temperature | -20°C to +70°C |
| 🔧 Mounting Type | DIN rail or panel mountable |
| 📐 Dimensions | 90mm x 70mm x 25mm |
| 🌐 Communication | Supports multiple industrial communication protocols (Modbus, etc.) |
| 📶 Accuracy | ±0.1% of full scale input range |
| 🔗 Power Supply | 24V DC (Nominal) |
| 📥 Output Type | Digital output for control systems |
| 🧰 Protection | Overvoltage, reverse polarity, and short circuit protection |
| ✅ Certifications | CE, UL, RoHS |
🌟 Key Features & Advantages
- Dual Input Types: Accepts both 10V DC and 4-20mA analog signals, making it suitable for a wide range of industrial sensors.
- High-Precision Conversion: The 16-bit analog-to-digital conversion ensures that input signals are accurately captured and transmitted to control systems for reliable decision-making.
- Robust Design: With an operating temperature range from -20°C to +70°C, the TC-IAH161 is built to endure harsh environmental conditions, ensuring long-lasting performance even in demanding industrial environments.
- Enhanced Accuracy: Offers ±0.1% accuracy, delivering highly reliable data that ensures precision control of industrial processes.
- Flexible Integration: Easily integrates into existing control systems, with support for multiple communication protocols, including Modbus, enabling seamless connectivity with PLCs, SCADA systems, and other automation platforms.
- Efficient Power Usage: Powered by a 24V DC supply, the TC-IAH161 is energy-efficient, reducing operational costs in the long term.
🧰 Applications
- Process Automation: Interface with industrial sensors like pressure, temperature, and flow meters to gather real-time data for automated control.
- Water Treatment Plants: Collect and monitor analog sensor signals for chemical dosing, pH levels, and water quality control.
- Oil and Gas: Used for measuring flow rates, pressures, and other critical parameters, enabling real-time decision-making and predictive maintenance.
- Chemical Processing: Monitor and control chemical reactions, ensuring that processes remain within safe operating limits.
- Building Automation: Integrates with HVAC systems, managing inputs from temperature and humidity sensors for energy-efficient building management.
🔗 Related Resources
🔄 Recommended Alternative Models
| Model Number | Key Differences | Ideal Applications |
|---|---|---|
| Honeywell TC-IAH162 | Similar functionality, but with more input channels | Large-scale process control |
| Siemens SITRANS I | Offers advanced diagnostics and real-time monitoring | Oil & gas, chemical industry |
| Schneider Electric BMXIAN0802 | Higher accuracy and additional input/output capabilities | Water treatment, automation systems |
| Emerson 8700 Series | Higher input voltage support (0-20V DC) | Power plants, heavy industries |
🛠️ After-Sales Support & Services
Honeywell provides full after-sales services to ensure the smooth operation of the TC-IAH161 module:
- 24/7 Technical Support: Available for troubleshooting, product queries, and application assistance.
- Warranty: A 1-year warranty is included, with extended coverage available.
- Spare Parts Availability: We ensure rapid supply of critical spare parts to minimize downtime in case of maintenance or failure.
- Training: Comprehensive training sessions to help your team efficiently use and troubleshoot the TC-IAH161.
For bulk purchases, technical consultation, or additional product inquiries, please contact us through the links provided. We offer expert solutions tailored to your needs.
