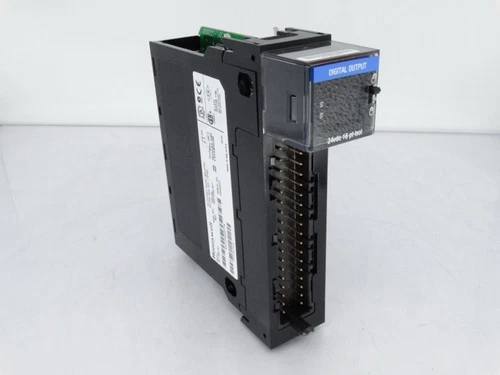

Honeywell TC-ODJ161 Output Module Overview
The Honeywell TC-ODJ161 is a high-performance output module designed for use in industrial automation and control systems. It is part of Honeywell’s Series 2000 I/O family and provides reliable control and interfacing capabilities for various processes. The module is designed to handle digital output signals, making it a crucial component for systems that require precise signal management in automated applications.
With its compact design and robust features, the TC-ODJ161 is used in industries such as manufacturing, process control, and energy management to ensure smooth operation and integration of I/O systems. It can handle a wide range of output configurations and is capable of providing high-speed, accurate control of devices such as actuators, relays, and valves.
Technical Specifications (Datasheet)
| Parameter | Specification |
|---|---|
| 📌 Model Number | TC-ODJ161 |
| ⚡ Output Type | Digital Output Module |
| 🔋 Output Channels | 16 Channels |
| 🔌 Voltage Rating | 24V DC (Nominal) |
| 🔧 Current Rating | 0.5 A per channel |
| 🌡️ Temperature Range | -40°C to +70°C |
| 💻 Communication | Used with Honeywell Control Systems |
| 🔌 Input Voltage | 24V DC |
| ⚙️ Mounting | DIN Rail Mounting |
| 🧰 Weight | Approx. 500g |
Key Features
- 🎯 High Channel Density: The TC-ODJ161 provides 16 independent digital output channels in a single module, optimizing space in the control system.
- 💡 Industry-Standard Voltage: It operates on 24V DC, making it compatible with a wide range of industrial equipment.
- ⚡ Compact and Durable: The module is designed to withstand industrial conditions and features a compact, DIN rail-mountable design, making it easy to integrate into control panels.
- 🛡️ Enhanced Reliability: With robust protection features, including overcurrent and overvoltage protection, the TC-ODJ161 is designed for long-term reliability in challenging environments.
- 🔗 Seamless Integration: Compatible with Honeywell’s automation systems, the TC-ODJ161 is easy to integrate into existing setups without requiring additional hardware.
Applications
The Honeywell TC-ODJ161 output module is ideal for use in various industrial automation applications. Some of the common applications include:
- Manufacturing Automation: Controls actuators, relays, and other devices on the factory floor to automate production processes.
- Process Control Systems: Provides precise control over valves, solenoids, and other digital devices used in continuous process control applications.
- Energy Management: Integrates with energy management systems to control electrical circuits and systems, providing real-time monitoring and control of power distribution.
- Building Automation: Used in building management systems for controlling lighting, HVAC systems, and other digital devices within commercial buildings.
After-Sales Support
Honeywell offers comprehensive after-sales support for the TC-ODJ161 module, ensuring that users have access to timely service and assistance. Some of the key support features include:
- 🧰 Technical Support: Available for troubleshooting, installation assistance, and system configuration.
- 🔄 Product Warranty: Includes a standard warranty period to ensure the reliability and performance of the module.
- 🛠️ Software Updates: Honeywell provides software updates to enhance functionality and ensure compatibility with the latest systems.
- 📦 Spare Parts and Accessories: Easy access to spare parts and accessories to keep the system running smoothly.
Visit Honeywell’s support website or authorized distributors for more information about service options and how to access these support resources.
🔗 Visit Honeywell Support Page
Similar Models Comparison
| Model | Output Channels | Nominal Voltage | Mounting Type | Key Feature |
|---|---|---|---|---|
| Honeywell TC-ODJ161 | 16 | 24V DC | DIN Rail Mount | High-density output for automation |
| Honeywell TC-ODJ162 | 8 | 24V DC | DIN Rail Mount | Lower channel count, similar features |
| Honeywell TC-ODJ163 | 32 | 24V DC | DIN Rail Mount | Extended I/O capacity for larger systems |
| Honeywell TC-ODJ160 | 16 | 24V DC | DIN Rail Mount | Similar module with different output characteristics |
Conclusion
The Honeywell TC-ODJ161 digital output module is an essential component for automating processes in various industrial environments. With 16 output channels, robust protection features, and seamless integration into Honeywell’s control systems, the TC-ODJ161 offers a reliable, high-performance solution for automation and control. Whether used in manufacturing, process control, or energy management, the TC-ODJ161 helps ensure system reliability and efficiency.
