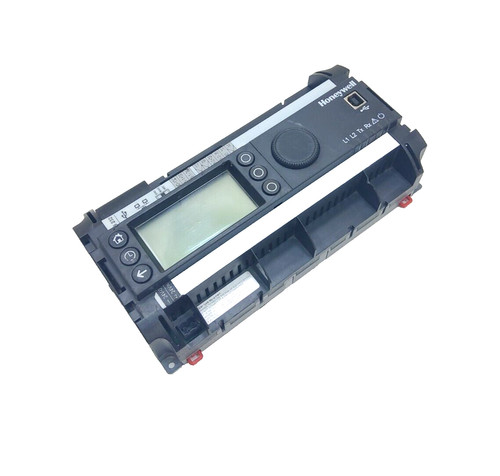

The Honeywell XL2000B2A is a high-performance, programmable digital controller belonging to the Excel 2000 series. Designed for sophisticated building management and HVAC control, this module serves as a localized intelligence unit capable of managing complex environmental sequences. The Honeywell XL2000B2A integrates seamlessly into Honeywell’s EBI (Enterprise Buildings Integrator) or CARE (Computer Aided Regulation Engineering) environments, ensuring energy efficiency and precise climate control in commercial and industrial infrastructures.
Technical Parameters and Datasheet
-
Product ID: XL2000B2A
-
Brand: Honeywell
-
Series: Excel 2000 / Excel 5000 Family
-
Input/Output Ports: Mixed Analog and Digital I/O (Configuration dependent)
-
Communication: LonWorks / C-Bus compatible
-
Dimensions: 150 mm x 120 mm x 65 mm
-
Weight: 0.58 kg
-
Country of Origin: Germany / USA
-
Operating Voltage: 24V AC, 50/60 Hz
-
Memory: Flash EPROM for OS and RAM for application data
Application Fields
The XL2000B2A is primarily deployed in building automation systems (BAS) for the control of Air Handling Units (AHUs), boiler plants, and chiller systems. Its programmable nature allows it to handle specialized sequences such as VAV (Variable Air Volume) control, lighting management, and district heating regulation. It is a preferred choice for large-scale facilities like hospitals, corporate offices, and data centers where centralized monitoring and decentralized control are required to maintain strict environmental parameters.
Product Instructions
The controller should be mounted on a standard DIN rail within a protected electrical cabinet. Ensure that the 24V AC power source is stable and that the transformer is correctly sized for the total load of the controller and any connected actuators. Wiring for the LonWorks or C-Bus network must follow standard daisy-chain topology to ensure stable communication with the front-end server. Configuration and commissioning are performed using Honeywell’s CARE software tool, which allows for the creation of custom control logic and time schedules. Periodically check the status LEDs on the front panel to verify network activity and CPU health.
Common Questions and Answers
Q: Can this controller operate as a standalone unit? A: Yes, once the logic has been downloaded via the CARE software, the XL2000B2A can execute its programmed schedules and control loops independently, even if communication with the central server is lost.
Q: What is the maximum number of I/O points supported? A: The XL2000B2A has a fixed number of onboard I/O, but it can often be expanded by connecting additional Distributed I/O modules via the internal communication bus, depending on the specific firmware version.
Q: Is the XL2000B2A compatible with modern Niagara-based systems? A: Yes, through the use of LonWorks or specialized drivers/gateways, the Excel 2000 series can be integrated into Niagara-4 or JACE-based building management architectures.
