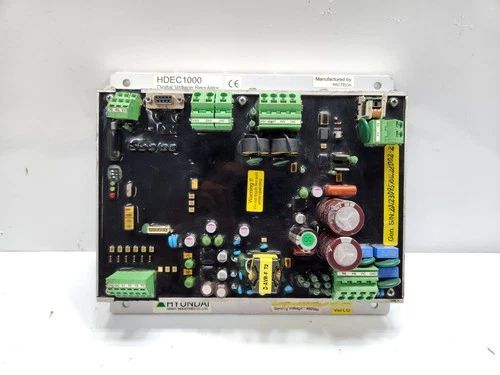

The Hyundai HDEC1000 Digital Voltage Regulator (Ver 1.12) is a sophisticated control unit engineered to provide precise voltage regulation for industrial generators. By utilizing advanced microprocessor technology, it ensures stable output, rapid transient response, and comprehensive protection for electrical systems. This digital platform offers superior flexibility and reliability compared to traditional analog regulators.
Product Specifications
-
Model Name: HDEC1000
-
Version: 1.12
-
Dimensions: 150 mm x 100 mm x 50 mm
-
Weight: 0.6 kg
-
Origin: South Korea
Key Features and Applications
The HDEC1000 is primarily designed for high-performance power generation systems. Its application areas include industrial power plants, marine auxiliary engines, and standby power systems for critical infrastructure. The unit excels in maintaining voltage stability under varying load conditions, making it an essential component for ensuring the longevity and efficiency of generator sets.
User Instructions
To install and operate the HDEC1000, first ensure the generator is fully powered down and locked out. Mount the unit securely in the control cabinet using the vibration-resistant mounting holes. Connect the sensing inputs and excitation outputs according to the terminal wiring diagram provided in the technical manual. Once installed, use the integrated digital interface to set the nominal output voltage and protection parameters. Calibration should be performed using a high-precision multimeter to match the generator’s specific nameplate requirements. Always conduct a trial run at no load before engaging the system with the main power grid.
Q&A
What is the primary function of the HDEC1000? It is designed to automatically regulate the excitation current of the generator to maintain a constant output voltage regardless of load changes. Is the Ver 1.12 compatible with previous analog versions? While it replaces older units in function, wiring and parameter configuration must be re-validated by a qualified technician to ensure compatibility. How do I troubleshoot a voltage dip? First, verify all input connections and sensor leads for continuity, then check the digital status display for active alarm codes. Does it require special maintenance? Periodic inspection of connections for corrosion and ensuring the cooling fins remain free of dust is recommended to ensure optimal thermal performance.
