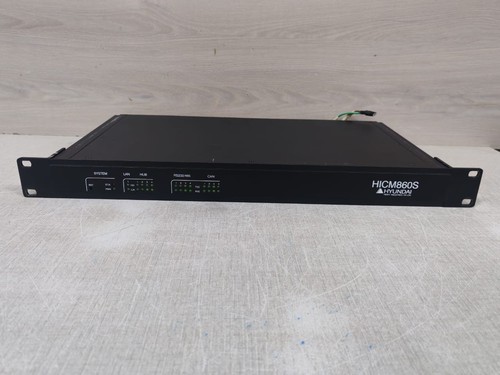

The Hyundai HICM860S, also identified by part number HICM860S-08090022, is a high-performance Processor Communication Device engineered for integration within Hyundai’s industrial automation and Distributed Control System (DCS) architectures. This module functions as a critical processing engine, managing data flow, protocol conversion, and command execution between controllers and field devices to ensure seamless operational synchronization and system-wide reliability.
📋 Product Specifications
-
Model Number: HICM860S (P/N: HICM860S-08090022)
-
Function: Processor and Communication Module
-
System Compatibility: Hyundai DCS / High-level Industrial Controllers
-
Dimensions: Standard industrial module form factor (Approx. 200mm x 120mm x 40mm)
-
Weight: 0.60 kg
-
Country of Origin: South Korea
-
Operating Temperature: -10°C to +60°C
-
Communication Interface: Proprietary High-Speed Backplane Bus / Industrial Ethernet
🏢 Application Areas
This processor module is widely utilized in large-scale industrial sectors, including power generation, heavy manufacturing, shipbuilding automation, and chemical processing. It serves as the “brain” of the control loop, handling real-time data processing for complex algorithms and serving as the gateway for communications between the central management station and localized field I/O racks, ensuring that critical industrial processes remain stable and responsive.
🛠️ Product Usage Instructions
-
Safety Procedures: Ensure the local power supply for the control rack is switched off before installation to protect the sensitive internal circuitry.
-
Module Insertion: Align the HICM860S module with the designated rack guides. Slide it in smoothly until the backplane connectors seat firmly, then secure the module using the built-in locking/ejection levers.
-
Connectivity: Ensure all interface cables are properly routed and shielded. Confirm that communication ports are free of dust or metallic debris before plugging in signal harnesses.
-
Initialization: Power the system. The HICM860S will initiate a power-on self-test (POST). A solid green “READY” status light indicates that the processor has successfully booted and established communication with the main controller.
-
Configuration: Use the Hyundai engineering software to download the latest firmware and project configuration files to the module, ensuring the processor is synced with your facility’s specific logic requirements.
❓ Q&A
What is the primary role of the HICM860S in the system? This module acts as both a local processor and a communication bridge. It offloads real-time processing tasks from the central controller and manages high-speed data transmission across the field bus, reducing network latency. What does the P/N 08090022 signify? This is a specific manufacturing batch/revision code. It is important to note this number when ordering replacements to ensure compatibility with your existing hardware and software revision levels. Is it possible to replace this module while the system is running? While many DCS systems support hot-swapping, you must first verify through your system’s documentation if the specific rack and firmware support this, and place the segment in “Maintenance Mode” to prevent accidental trips. What causes a “Comm Error” on this device? A communication error is usually caused by either a loose backplane connection, a misconfigured node address, or physical damage to the communication bus cable. Verify physical links before checking software settings.
