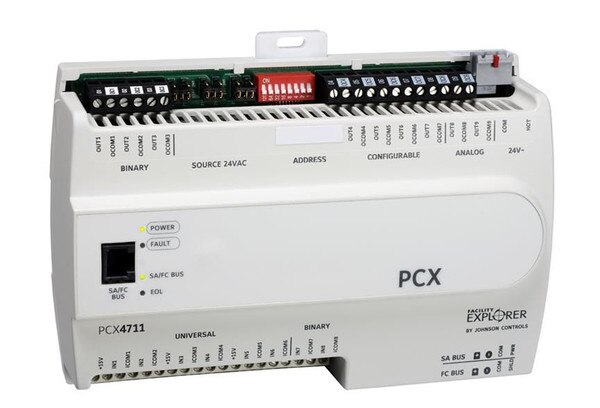

The Johnson Controls FX-PCX4711-0 Programmable Expansion Module Controller is a high-performance, scalable, and flexible building automation controller designed to expand the capabilities of the Johnson Controls FX Series systems. This expansion module is part of the FX-PCX line and provides a solution for increasing the I/O (input/output) capacity of the building control system. It integrates seamlessly with Johnson Controls’ Metasys® Building Automation System (BAS), offering centralized control, monitoring, and optimization of HVAC (heating, ventilation, and air conditioning), lighting, and other critical building systems.

The FX-PCX4711-0 is specifically designed to provide programmable logic control (PLC) capabilities, allowing users to implement custom control strategies for a wide range of building automation applications. Its modular design allows it to be added to an existing control network to extend the control capabilities without requiring an entirely new system.

Key Features:

• Programmable Logic Control: The FX-PCX4711-0 supports programmable logic control (PLC) functionality, enabling users to implement custom control sequences and automation strategies tailored to specific building requirements.
• Expansion Capability: Designed to be a part of a larger building control system, it allows users to add more I/O points (inputs and outputs) to increase system flexibility and control.
• Seamless Integration: It is fully compatible with the Metasys® system, making it easy to integrate into existing Johnson Controls automation systems. This ensures efficient operation, monitoring, and data exchange with other components in the system.
• Flexible I/O Options: The module supports a wide range of I/O types, including digital, analog, and communication-based inputs and outputs, making it adaptable to a variety of automation tasks and building control applications.
• Web-Based Interface: The module can be configured, monitored, and maintained via a web-based interface, allowing for convenient remote access and management of the system from anywhere with internet connectivity.
• Built-in Diagnostics: The FX-PCX4711-0 features diagnostic tools for troubleshooting and monitoring system health, including status indicators, fault detection, and real-time system alerts.
• Modular and Scalable: As a part of the FX-PCX family, the module is modular, allowing users to add multiple expansion units as needed for additional control and monitoring needs. Its scalable nature makes it suitable for both small and large building systems.
• Energy Management: It can play a key role in energy management by optimizing the operation of HVAC and other systems based on real-time demand and environmental conditions, helping to reduce energy consumption and lower operational costs.

Technical Specifications:

• Model Number: FX-PCX4711-0
• Processor: Embedded controller with programmable logic control (PLC) functionality
• Communication Ports:
  • Ethernet: 10/100 Mbps, TCP/IP communication for integration with Metasys® system
  • BACnet® IP: Supports BACnet® for seamless integration with other BACnet®-compatible devices and systems
  • RS-485: For connecting other devices using standard protocols such as Modbus RTU
• Input/Output Points:
  • Analog Inputs: Up to 8 channels (0-10V or 4-20mA)
  • Digital Inputs: Up to 16 channels (dry contact or voltage-based)
  • Digital Outputs: Up to 8 channels (relay or triac)
  • Analog Outputs: Up to 4 channels (0-10V)
• Operating Voltage: 24 VDC
• Power Consumption: Approx. 15W (depends on the number of connected devices)
• Operating Temperature: 0°C to +50°C (32°F to 122°F)
• Storage Temperature: -20°C to +70°C (-4°F to 158°F)
• Relative Humidity: 5% to 95% RH, non-condensing
• Dimensions: 200 mm x 160 mm x 60 mm (approx.)
• Mounting: DIN rail or panel mount
• Weight: 1.2 kg (approx.)
• Protection Class: IP20 (for indoor use)

Protection and Safety Features:

• Overvoltage Protection: Protects the module and connected equipment from power surges or spikes, ensuring reliable operation and longevity of the system.
• Overcurrent Protection: Prevents excessive current from damaging the internal circuitry, particularly in the event of short circuits or heavy load conditions.
• Thermal Protection: Includes sensors to monitor the internal temperature of the unit, ensuring it does not overheat during extended operation.
• Status Indicators: LEDs and diagnostic outputs for real-time monitoring of system health, helping to detect faults and operational issues.

Installation and Maintenance Instructions:

• Installation:
  1. Mounting: Secure the FX-PCX4711-0 module onto a DIN rail or appropriate mounting surface in an electrical control panel. Ensure proper airflow around the unit for adequate cooling.
  2. Wiring: Connect the 24 VDC power supply to the input terminals and wire the I/O points (digital/analog inputs and outputs) according to the specific requirements of the application. Refer to the wiring diagram provided in the user manual for correct connections.
  3. Networking: Connect the Ethernet or BACnet communication ports to the existing building automation network to allow the module to integrate with the Metasys® system or any other compatible system.
  4. Configuration: Access the web-based configuration tool via a standard web browser to configure the controller. Set up communication protocols, I/O points, and programming logic to suit the needs of the building system.
• Maintenance:
  • Routine Inspections: Check the controller for any signs of damage, wear, or overheating. Verify that all wiring connections are secure, and that the unit is operating within its specified temperature range.
  • Firmware Updates: Periodically check for firmware updates from Johnson Controls to ensure the controller is running the latest features and security patches.
  • Cleaning: Keep the unit clean by wiping it down with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials that could damage the controller’s surface or internal components.
  • Diagnostics: Regularly monitor the diagnostics and status indicators to identify any faults or operational issues early. Address any error messages or warnings promptly to ensure system uptime.
• Troubleshooting:
  • No Power: If the module does not power on, check the power supply connections and ensure that the 24 VDC input is correctly wired and functioning.
  • Communication Failure: If the module fails to communicate with other devices or the network, check the Ethernet, BACnet, and RS-485 connections. Verify that the correct communication settings are configured.
  • Fault Indicators: Use the built-in diagnostic LEDs to identify fault conditions. Consult the error codes in the user manual to diagnose and resolve the issues.

Product Recommendations:

For similar expansion or control modules compatible with building automation systems, consider the following options:

Advantages of the Johnson Controls FX-PCX4711-0:

• Modular Expansion: Easily add more I/O points to an existing system without needing a complete overhaul, saving both time and money.
• Flexible Control: The ability to program custom control strategies provides tailored automation solutions for HVAC, lighting, and other building systems.
• Seamless Integration: Full compatibility with the Metasys® system ensures easy integration into existing building control networks, streamlining operations and data flow.
• Web-Based Access: The module’s web interface enables remote configuration, monitoring, and troubleshooting, improving operational efficiency.
• Scalability: The FX-PCX4711-0 supports system expansion, making it suitable for buildings of all sizes and complexities.

Conclusion:

The Johnson Controls FX-PCX4711-0 Programmable Expansion Module Controller is an advanced, flexible solution for expanding the capabilities of building automation systems. It is particularly well-suited for enhancing the Metasys® system, providing additional I/O, and enabling custom control of HVAC, lighting, and other building systems. Its modular nature, web-based configuration, and diagnostics make it a valuable tool for improving system efficiency and performance in large and complex facilities.
