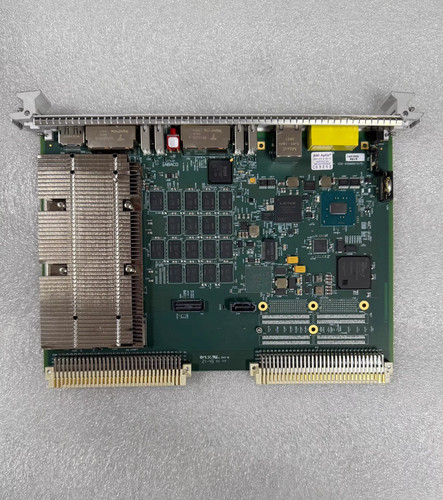

The Lam Research 605-A53842-002A is an advanced, semiconductor-grade X10 controller board engineered for high-precision etch and deposition process systems. Functioning as a critical localized control node within the wafer processing architecture, this board coordinates real-time sub-system communications, vacuum pressure monitoring, mass flow controller inputs, and RF generator feedback loops. Built on a rugged multi-layer PCB substrate with high-density surface-mount components, the 605-A53842-002A provides the sub-millisecond execution speeds and exceptional signal isolation required to ensure wafer-to-wafer process uniformity and prevent contamination or tool downtime in cleanroom environments.
Ensure your semiconductor production line maintains peak operational stability by ordering through our Lam Research 605-A53842-002A dedicated technical hardware inventory.
Product Datasheet and Technical Specifications
-
Equipment Platform Compatibility: Lam Research Etch (Alliance, 2300, Kiyo) / Deposition Chambers
-
Model Designation: X10 Controller Architecture
-
Engineering Part Number: 605-A53842-002A
-
Card Type: Intelligent Sub-System Node Controller Board
-
Core Microcontroller: High-speed proprietary embedded microprocessor array
-
Interface Communication Array: Dual-channel high-speed local bus, fiber-optic link headers, and RS-485 serial ports
-
Logic Power Profile: +5VDC, +12VDC, and -12VDC inputs driven via tool backplane carrier
-
Input/Output Configuration: Mixed high-resolution analog and optically isolated digital I/O channels
-
Shielding Metrics: Integrated ground planes and internal metallic trace shielding against RF interference
-
Surface Coating: Specialized cleanroom-compliant conformal coating preventing particle generation
-
Mounting Layout: Custom rack-mount slide-in form factor with front panel locking thumb screws
-
Net Physical Weight: 460 grams (1.01 lbs precision hardware component)
-
Cleanroom Thermal Range: +15°C to +45°C (59°F to 113°F) highly stable localized cabinet cooling
-
Humidity Tolerance: 20% to 80% RH, strictly non-condensing cleanroom standards
-
Regulatory Certifications: SEMI S2/S8 compliant, CE marked, UL component recognized
-
Country of Production: United States (USA)
Key Application Fields
This X10 controller board is specifically designed for the semiconductor manufacturing sector, playing a vital role in cleanroom wafer fabrication equipment. It is utilized exclusively within plasma etching chambers (including dielectric, conductor, and silicon etch systems) and chemical vapor deposition (CVD/PECVD) equipment arrays. Within these tools, it regulates the highly sensitive closed-loop systems governing electrostatic chuck (ESC) temperature zones, vacuum gate valve positions, gas distribution manifests, and multi-frequency plasma matching networks, ensuring repeatable nano-scale processing geometries.
Installation and Operating Instructions
Before installing or removing the controller board, perform a full tool shutdown, isolate the gas and RF power systems, and verify that all residual high-voltage charges have been safely bled down.
Because this hardware operates inside highly sensitive semiconductor tools, workers must be fully garbed in a certified cleanroom suit and wear a grounded ESD wrist strap before handling the component. Locate the designated card slot within the tool’s main card cage or electronics bay. Align the 605-A53842-002A card with the upper and lower guide tracks, and smoothly slide the board in until the backplane pin assembly mates fully with the receiver block.
Hand-tighten the front faceplate thumb screws to lock the board in place and establish a frame ground link. Re-attach any specialized fiber-optic or high-density ribbon cables to the front panel ports. Power up the tool and access the main engineering terminal interface. Verify that the tool operating software successfully maps the new X10 node, matches firmware versions, and passes all low-level communication loop diagnostics before running a standard test wafer verification recipe.
Frequently Asked Questions Q&A
Q: What specific sub-systems does the 605-A53842-002A X10 board control? A: It acts as an intelligent localized hub. Depending on the chamber configuration, it typically manages the rapid data exchanges between the chamber’s mass flow controllers (MFCs), pressure manometers, endpoint detection sensors, and the tool’s primary master controller.
Q: How does this board protect its internal circuits against RF noise inside the etch tool? A: The board features specialized opto-isolators on its input channels and relies on a multi-layer PCB design with dedicated grounding planes. This construction creates an effective barrier against the high-frequency electromagnetic interference (EMI) generated by nearby RF plasma networks.
Q: Can this board be hot-swapped while the semiconductor tool is powered up? A: No. Removing or inserting an X10 card while the backplane is energized can cause severe electrical arcs across the pin connectors, potentially corrupting node configurations or damaging surrounding logic hardware. Always power down the card cage first.
Q: Why is matching the exact suffix version (like -002A) critical for this component? A: Suffix designations in Lam Research hardware represent specific electronic revisions, chip layouts, or onboard firmware baselines. Utilizing an incorrect revision can lead to node identification failures within the system software, preventing the tool from initializing.
